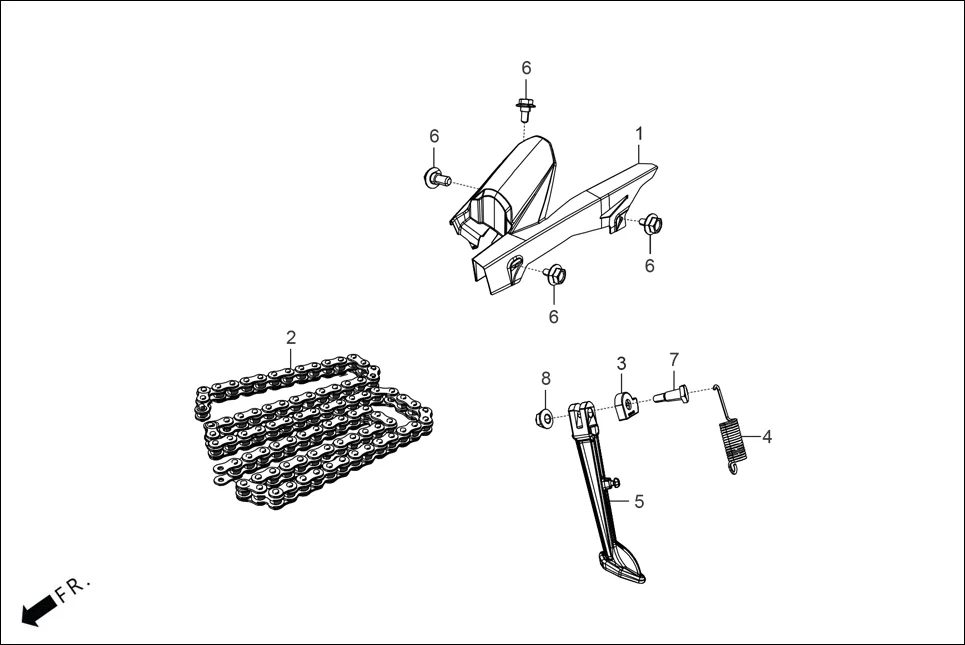

F-19A - CHAIN CASE & STAND
Hero THE CENTENNIAL(OCT.,2024) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-ACA-000 | CHAIN CASE UPPER | 1 | |
| 2 | ACYAC3A000000G | CHAIN DRIVE | 1 | |
| 3 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 4 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 5 | ACYAF2G000000G | STAND SIDE | 1 | |
| 6 | 90111-06014-0F | BOLT FLANGE 6MM DIA 16MM | 4 | |
| 8 | 90304-100F0 | NUT U 10 MM | 1 | |
