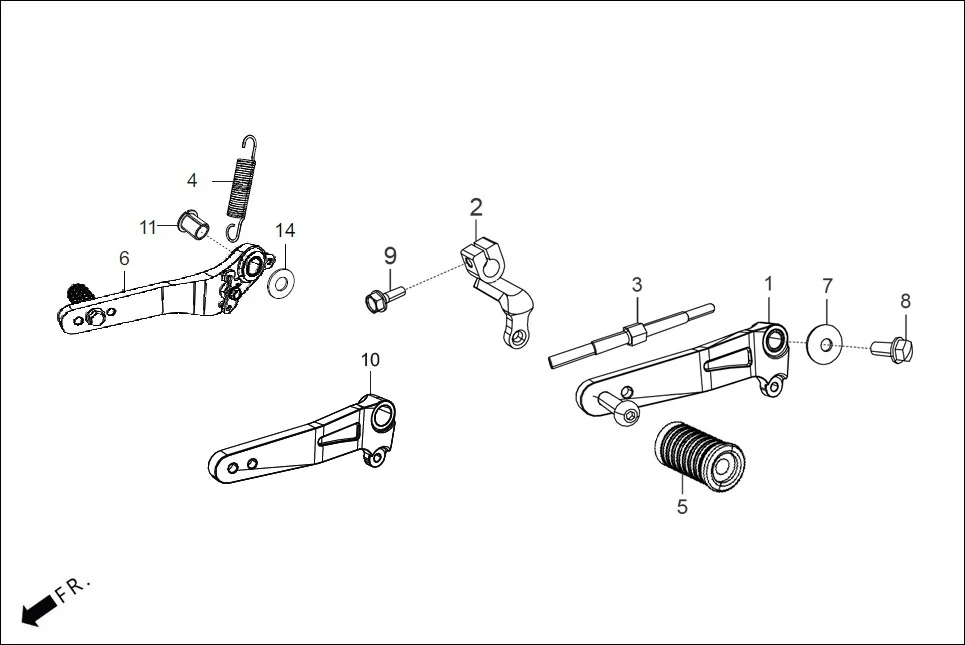

F-18 - GEAR CHANGE PEDAL /BRAKE PEDAL
Hero THE CENTENNIAL(OCT.,2024) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 24711-ABZ-000 | ARM GEAR CHANGE | 1 | |
| 3 | ACYAF2N012000G | THREADED TIE ROD | 1 | |
| 4 | 46514-ABZ-000 | SPG. BRAKE PEDAL | 1 | |
| 5 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 6 | ACYAC3G002000G | PEDAL BRAKE | 1 | |
| 7 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 8 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 | |
| 9 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 10 | ACYAF2N011000G | ARM PEDAL GEAR | 1 | |
