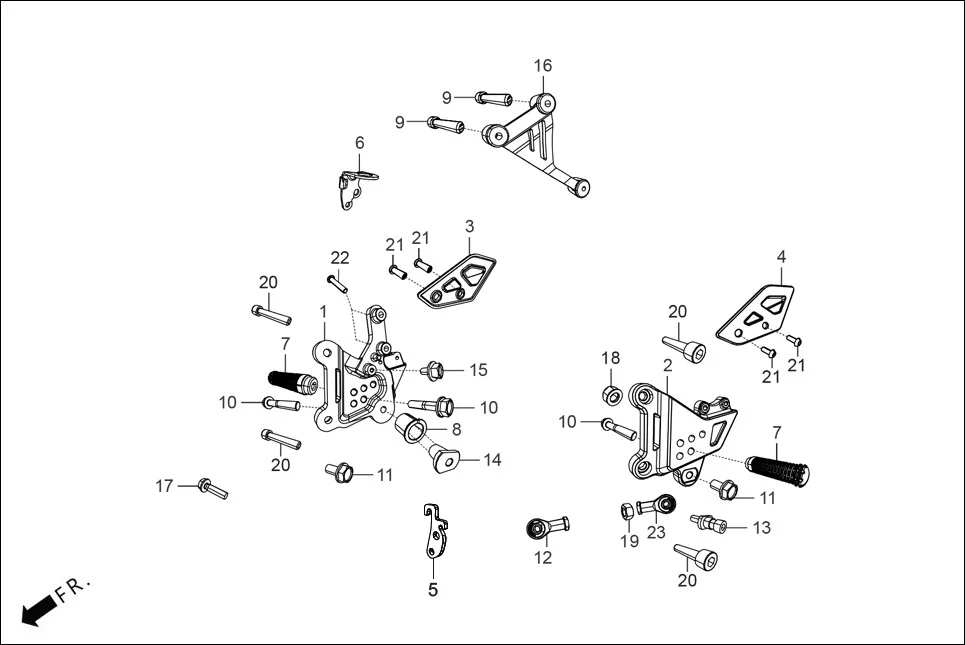

F-17 - STEP PILLION
Hero THE CENTENNIAL(OCT.,2024) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACYAF2D004000G | HOLDER STEP RH | 1 | |
| 2 | ACYAF2D001000G | HOLDER STEP LH | 1 | |
| 3 | ACYAF2D006000G | GUARD STEP RH | 1 | |
| 4 | ACYAF2D005000G | GUARD STEP LH | 1 | |
| 5 | ACYAC3D000000G | PEDAL SPRING BRACKET | 1 | |
| 7 | ACYAF2D007000G | ARM RIDER LH | 2 | |
| 8 | ACYAC3G004000G | INSERT PEDAL BRAKE | 1 | |
| 8 | ACYAF2N013000G | INSERT A PEDAL GEAR | 1 | |
| 9 | 96600-08032-0W | SOCKET BOLT 8X32 | 2 | |
| 10 | 95701-08040-0E | BOLT FLANGE 8X40 | 3 | |
| 11 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 12 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
| 13 | 50643-KCT-690 | PIVOT,CHANGE PEDAL | 1 | |
| 14 | ACYAC3D001000G | BUSH PIVOT PEDAL BRAKE | 1 | |
| 15 | 95701-05010-0F | BOLT FLANGE 5X10 | 1 | |
| 16 | ACYAF2E000000G | STAY MUFFLER REAR | 1 | |
| 17 | 95701-06028-00 | BOLT, FLANGE, 6X28 | 1 | |
| 18 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 19 | 94001-06000-0S | NUT, HEX., 6 MM | 1 | |
| 20 | 96700-08040-0W | SOCKET BOLT 8X40 | 4 | |
| 21 | 96800-06016-00 | BOLT SOCKET 6X16 | 4 | |
| 22 | 96800-06030-00 | BOLT SOCKET 6X30 | 2 | |
| 23 | ACZAF2N004000G | TIE ROD C | 1 | |
| 24 | ACZAF2N002000G | TIE ROD A | 1 | |
