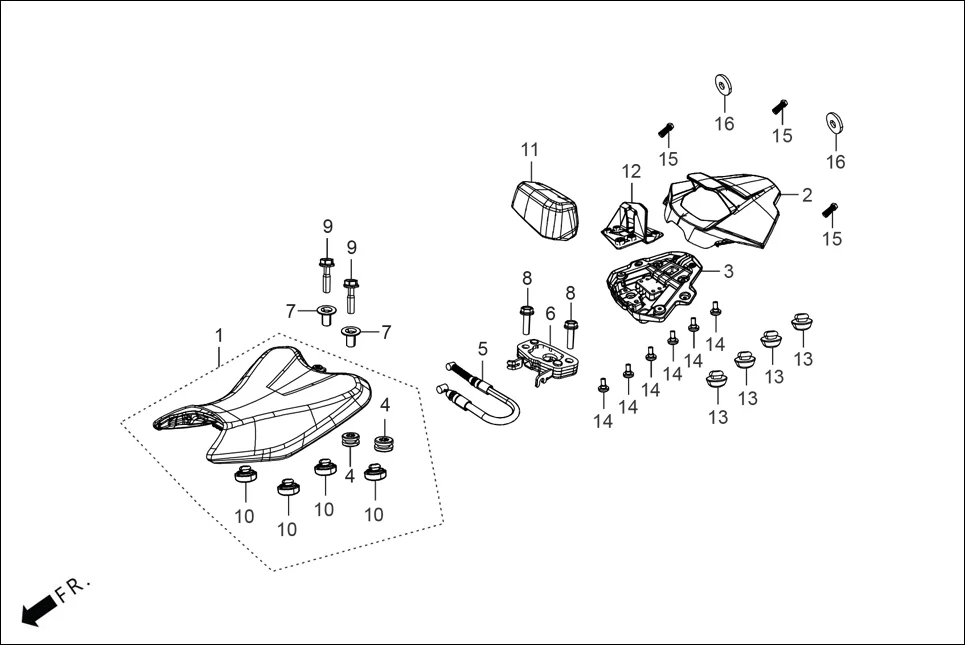

F-12A - SEAT ASSY.
Hero THE CENTENNIAL(OCT.,2024) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77100-ACA-000 | SEAT COMP RIDER | 1 | |
| 2 | ACYAS6A0130BPG | SET COVER SEAT BACKREST(INDUSTRIAL DARK GREY) | 1 | |
| 2 | 77502-ACY-000J | SET COVER SEAT BACK REST (CARBON FIBER) | 1 | |
| 3 | ACYAB4U003000G | PLATE LOCKING BOTTOM ASSY | 1 | |
| 4 | 64122-KV0-000 | RUB B , SIDESHELTER | 2 | |
| 5 | 77156-ACA-001 | CABLE SEAT LOCK | 1 | |
| 6 | 77170-ACF-000 | BRKT D COMP SEAT LOCK | 1 | |
| 7 | 77207-KWF-900 | COLLAR , SEAT MOUNTING | 2 | |
| 8 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 2 | |
| 9 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 10 | ACAAB4U000000G | GROMMET SEAT | 4 | |
| 11 | 77501-ACY-000 | SEAT BACKREST | 1 | |
| 12 | ACYAB4U002000G | STAY SEAT BACKREST ASSY | 1 | |
| 13 | 50369-ACA-000 | STOPPER RUBBER B | 4 | |
| 14 | 90001-06014-02 | SOCKET BOLT SPL M6X14 | 6 | |
| 15 | 92000-06016-0A | BOLT, HEX., 6 X 16 | 3 | |
| 16 | 90417-041-000 | WASHER, GEAR SHIFT DRUM SIDE | 2 | |
