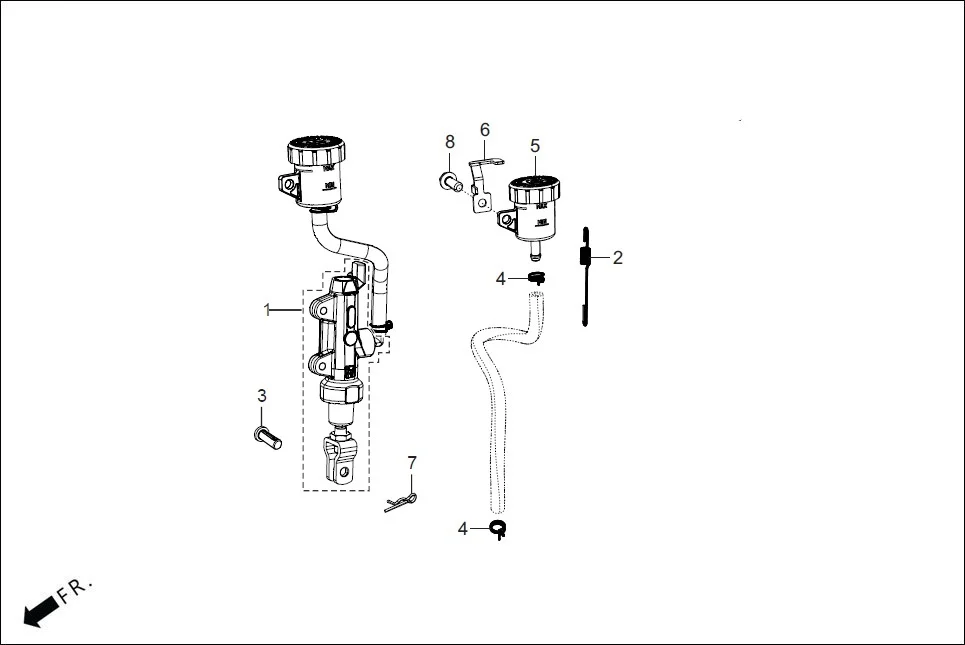

F-10 - REAR BRAKE (MASTER CYLINDER)
Hero THE CENTENNIAL(OCT.,2024) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43506-ACD-000 | M/C RR BRAKE | 1 | |
| 2 | 35357-KCT-690 | SPRING STOP SWITCH | 1 | |
| 3 | 95015-RAA-000 | PIN MASTER CYL JOINT | 1 | |
| 4 | 43514-AAN-G00 | CLIP, ACTUATOR HOSE | 2 | |
| 5 | 43550-AAZ-310 | RESERVOIR COMP RR | 1 | |
| 6 | 43551-ACA-000 | BRACKET RESERVOIR | 1 | |
| 7 | 94252-06D00 | PIN LOCK 6MM | 1 | |
