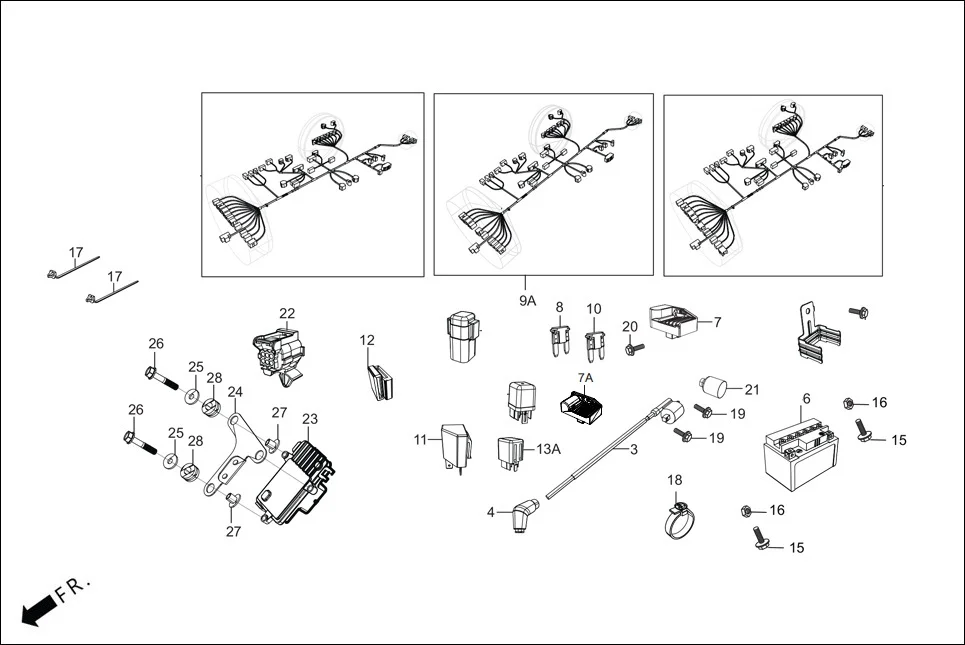

F-24-KICK - WIRE HARNESS/BATTERY
Hero HF DLX -BF THB(Sept.,2024) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 30510-ACK-00099 | COIL ASSY., IGN. | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 6 | 31500-KWS-801 | BATTERY ASSY., MF3-BS | 1 | |
| 6 | 31500-KWS-901 | BATTERY ASSY | 1 | |
| 6 | 31500-ACK-B31 | BATTERY ASSY 3AH | 1 | |
| 7 | 31600-AAW-B01 | REG. RECT. COMP | 1 | |
| 7 | 31600-AAE-B01 | REG. RECT. COMP | 1 | |
| 8 | 98215-HMC-000 | MINI FUSE 15A | 1 | |
| 9 | 32100-AEC-200 | HARNESS, WIRE (KICK) | 1 | |
| 10 | 98210-HMC-000 | MINI FUSE 10A | 1 | |
| 11 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 12 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 15 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 16 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 17 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 18 | 91541-ABG-000 | CLIP BAND | 1 | |
| 19 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 20 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 21 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 23 | 38770-AEC-201 | UNIT COMP ECU | 1 | |
| 24 | 50177-AAC-L00 | BRKT B ECU | 1 | |
| 25 | 90417-041-000 | WASHER, GEAR SHIFT DRUM SIDE | 1 | |
| 26 | 95701-06030-00 | BOLT, FLANGE, 6X30 | 1 | |
| 27 | 90502-AAC-L00 | COLLAR RUBBER CUSHION | 1 | |
