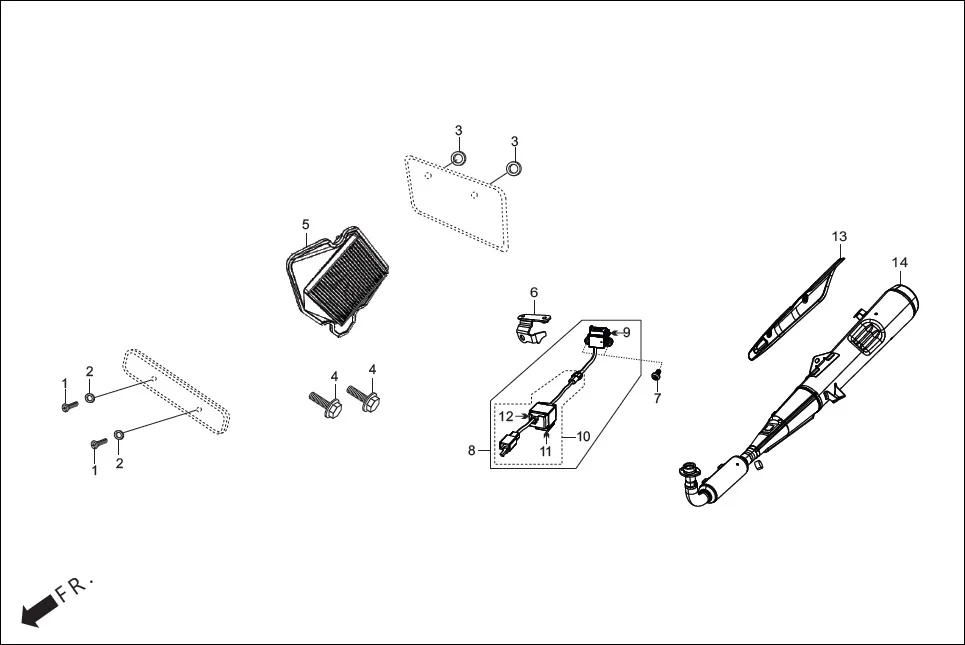

F-28A - (OPTIONAL)
Hero HF DLX -BF THB(Sept.,2024) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 4 | 90083-ACK-000 | BOLT KNOCK 5MM | 2 | |
| 5 | 17208-ACK-001 | HOLDER COMP ELEMENT | 1 | |
| 6 | 53115-ACK-420 | STAY USB CHARGER | 1 | |
| 7 | 93500-04016-0G | SCREW PAN 4X16 | 2 | |
| 8 | 31300-ACK-420099 | USB CHARGER ASSY | 1 | |
| 9 | 31308-ACK-421 | USB PORT | 1 | |
| 9 | 31308-ACK-422 | USB PORT | 1 | |
| 10 | 3130B-ACK-421 | USB CONTROLLER ASSY | 1 | |
| 10 | 3130B-ACK-422 | USB CONTROLLER ASSY | 1 | |
| 11 | 31307-ACK-421 | CUSHION USB UNIT | 1 | |
| 11 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 12 | 31309-ACK-421 | USB CONTROLLER | 1 | |
| 12 | 31309-ACK-422 | USB CONTROLLER | 1 | |
| 13 | 18355-AFA-000 | COVER MUFFLER ASSY | 1 | |
