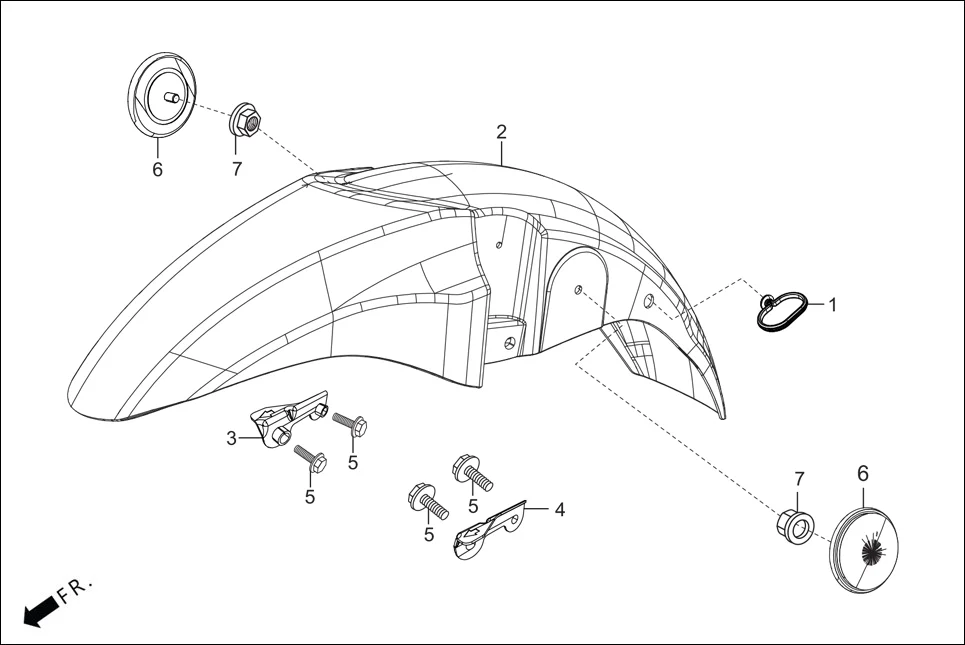

F-6 - FRONT FENDER
Hero HF Deluxe(Jan,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-AAF-400 | GUIDE, FR. (FENDER) CABLE | 1 | |
| 2 | 61100-AAH-100R | FENDER FR COMP(BLACK,NH-1(TYPE-1) | 1 | |
| 3 | 61103-KST-940 | COLLER, FR. FENDER R | 1 | |
| 4 | 61104-KST-940 | COLLER, FR. FENDER L | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 6 | 33741-KAK-971 | REFLEX, LEFT FRONT | 2 | |
| 6 | 33740-AAG-501 | REFLEX REFLECTOR FR SIDE | 2 | |
| 6 | 33760-AAE-201 | REFLEX REFLECTOR FR. SIDE | 2 | |
| 7 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
