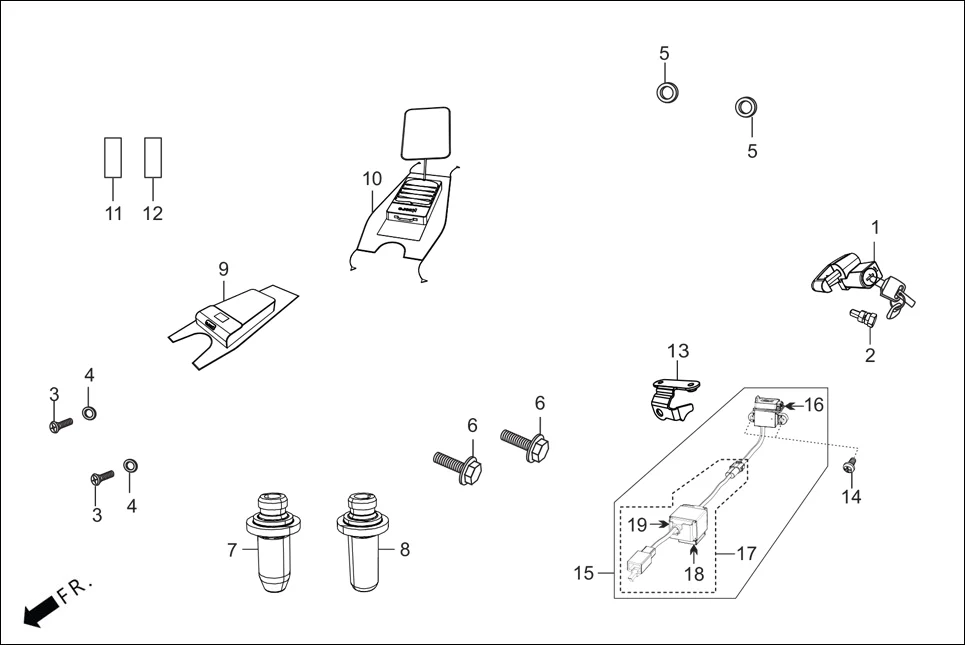

F-28A - (OPTIONAL)
Hero HF Deluxe(Jan,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50720-AAD-H00 | HOLDER ASSY.HELMET | 1 | |
| 2 | 90107-428-000 | BOLT,B SPECIAL,6 MM | 1 | |
| 3 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 6 | 90083-ACK-000 | BOLT KNOCK 5MM | 2 | |
| 9 | 99810-ACK-000 | COVER ASSY FUEL TANK | 1 | |
| 10 | 99810-ACK-001 | PREMIUM COVER ASSY FUEL TANK | 1 | |
| 12 | 99660-ACK-0000-20 | SILVER BODY COVER | 1 | |
| 13 | 53115-ACK-420 | STAY USB CHARGER | 1 | |
| 14 | 93500-04016-0G | SCREW PAN 4X16 | 2 | |
| 16 | 31308-ACK-421 | USB PORT | 1 | |
| 16 | 31308-ACK-422 | USB PORT | 1 | |
| 17 | 3130B-ACK-421 | USB CONTROLLER ASSY | 1 | |
| 17 | 3130B-ACK-422 | USB CONTROLLER ASSY | 1 | |
| 18 | 31307-ACK-421 | CUSHION USB UNIT | 1 | |
| 18 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 19 | 31309-ACK-421 | USB CONTROLLER | 1 | |
| 19 | 31309-ACK-422 | USB CONTROLLER | 1 | |
