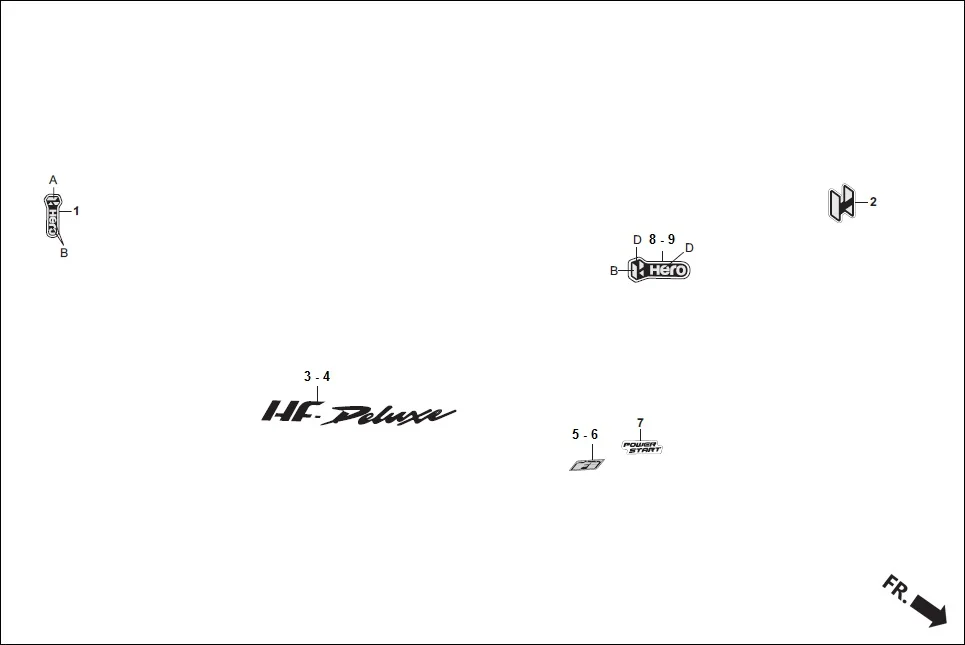

F-27A - STRIPES/MARK
Hero HF Deluxe(Jan,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77238-ACK-000R | MARK CENTER RR COWL (TYPE-1) | 1 | |
| 2 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 3 | 87117-ACK-500 | EMBLEM SIDE COVER RH | 1 | |
| 4 | 87118-ACK-500 | EMBLEM SIDE COVER LH | 1 | |
| 5 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 6 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 7 | 86511-KST-A30 | MARK UTILITY BOX COVER | 2 | |
| 8 | 86518-ACK-000R | STRIPE B, R. FUEL TANK (TYPE-1) | 1 | |
| 9 | 86519-ACK-000R | STRIPE B, L. FUEL TANK (TYPE-1) | 1 | |
