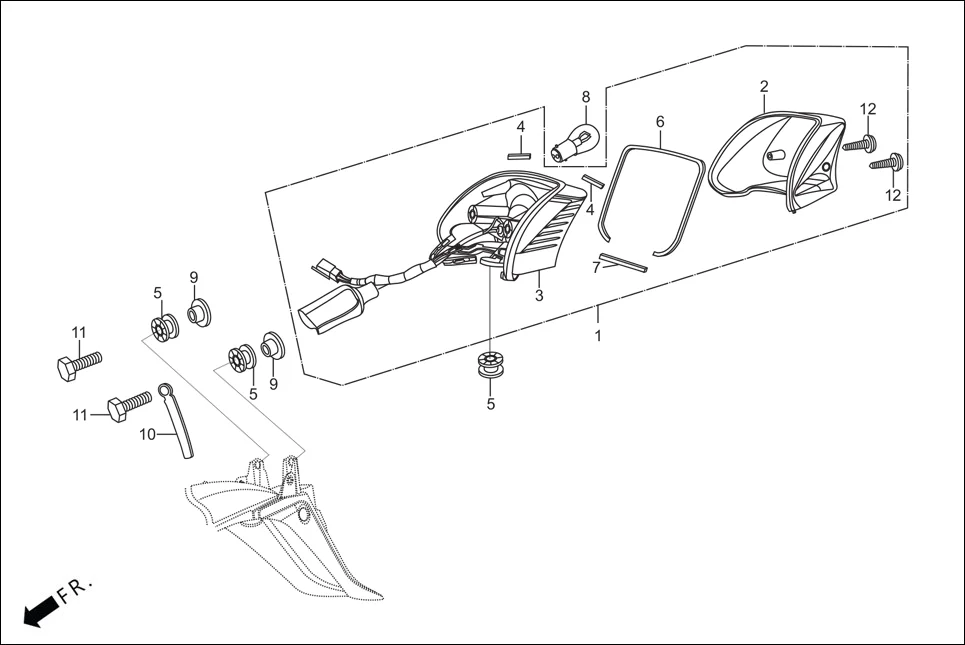

F-23 - TAIL LIGHT
Hero HF Deluxe(Jan,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3370B-AAH-A010099 | UNIT TAIL LIGHT | 1 | |
| 1 | 33700-AAH-F01 | UNIT, TAIL LIGHT | 1 | |
| 2 | 33703-AAH-A010099 | LENS COMP.TAIL LIGHT | 1 | |
| 2 | 33703-AAH-F01 | LENS COMP., TAIL LIGHT | 1 | |
| 2 | 33704-AAH-A010099 | BASE COMP TAIL LIGHT | 1 | |
| 3 | 33704-AAH-F01 | BASE COMP., TAIL LIGHT | 1 | |
| 5 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 3 | |
| 6 | 33708-KST-941 | PACKING, LENSE A | 1 | |
| 7 | 33709-KST-941 | PACKING, LENSE B | 1 | |
| 8 | 34906-447-710 | BULB, TAIL & STOP LIGHT (12V-21/5W) | 1 | |
| 9 | 61104-KM7-910 | COLLAR,FAIRING | 2 | |
| 11 | 92000-05022-0A | BOLT, HEX, 5X22 | 2 | |
| 12 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
