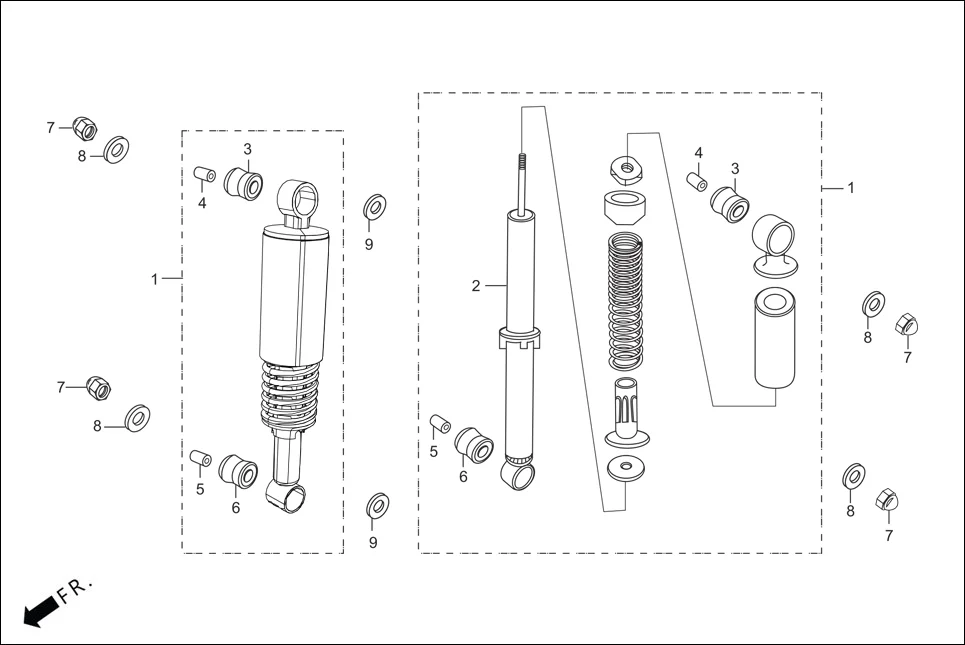

F-20 - REAR CUSHION

Hero HF Deluxe(Jan,2023) · 14 parts

Parts in This Assembly (14)

Ref #	Part Number	Description	Qty
1	52400-AAH-0099R	CUSHION ASSY RR (BLACK NH-1)	2
2	52410-AAH-000	DAMPER COMP. RR.	2
2	52410-AAH-001	DAMPER COMP, REAR	2
3	52489-399-600	BUSH ,RUBBER (UPPER)	2
3	52489-AAD-501	BUSH, RUBBER (UPPER)	2
4	52486-056-000	COLLAR, RUBBER BUSH (UPPER)	2
4	52486-AAD-501	COLLAR, RUBBER BUSH (UPPER)	2
5	52486-KAG-900	COLLAR ,RUBBER BUSH (UNDER)	2
5	51486-AAD-501	COLLAR RUBBER BUSH (UNDER)	2
6	52495-098-000	BUSH, RUBBER (UNDER)	2
6	52495-AAD-501	BUSH RUBBER(UNDER)	2
7	94021-10000-0S	NUT, HEX., CAP, 10MM	4
8	90551-178-000	WASHER,SPL., 10MM	4
9	94101-12000	WASHER, PLAIN, 12MM	2
