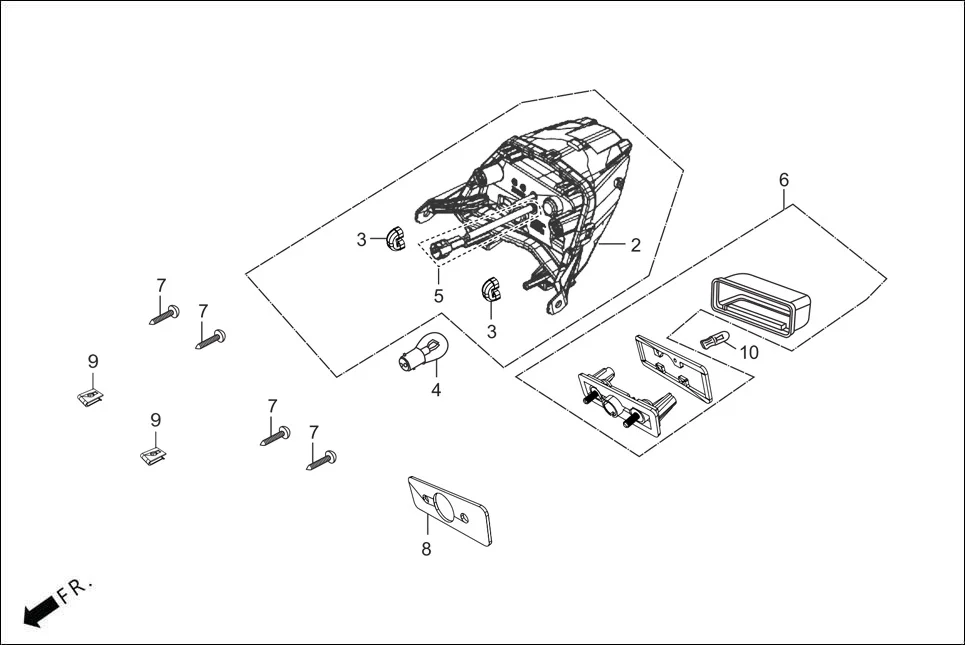

F-23-DRUM - TAIL LIGHT
Hero GLAMOUR XTEC 2(Aug.,2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 3370B-AAC-80099 | UNIT TAIL LIGHT | 1 | |
| 2 | 33702-AAC-80099 | UNIT COMP TAIL LIGHT | 1 | |
| 3 | 33706-ABA-000 | PIPE CP | 2 | |
| 4 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 4 | 34907-AAN-B00 | BULB TAIL AND STOP LIGHT | 1 | |
| 5 | 33703-AAC-80099 | SOCKET COMP. TAIL LAMP | 1 | |
| 6 | ADJRA7W000000G | LICENSE LIGHT ASSY. | 1 | |
| 7 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 8 | 80203-ACL-001 | RUBBER LICENSE LIGHT | 1 | |
| 9 | 90311-AAF-401 | SPEED NUT (M6) | 2 | |
| 10 | 34920-AAG-300 | BULB WEDGE BASE (T10 12V 3W) | 1 | |
