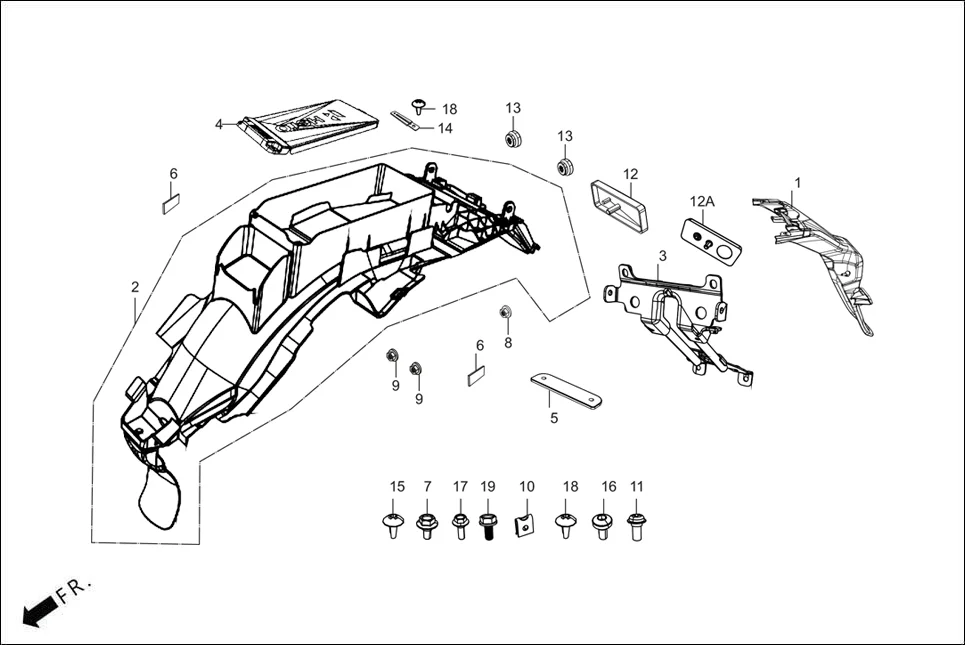

F-21 - REAR FENDER
Hero GLAMOUR XTEC 2(Aug.,2025) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADJRB4L001000G | FENDER REAR B | 1 | |
| 2 | ADJRB4L009000G | FENDER REAR COMP. | 1 | |
| 3 | ADJRB4L002000G | STAY FENDER REAR COMP | 1 | |
| 4 | ADJRB4L010000G | COVER BOX TOOL | 1 | |
| 5 | ADJRB4L012000G | CAP FENDER REAR | 1 | |
| 6 | 61309-AAP-000 | CUSHION, INNER FAIRING | 2 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 8 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 9 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 10 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 11 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 12 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 12 | 33741-AAE-201 | REFLEX REFLECTOR | 1 | |
| 13 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 14 | 94591-27000 | CLIP 2 X 70 | 1 | |
| 15 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 16 | SFBLSA004G | BOLT STEP ALLEN M5X0.8X12 | 2 | |
| 17 | 90111-06019-03 | BOLT FLANGE 6MM | 2 | |
| 18 | 93903-34210 | SCREW TAPPING 4X10 | 3 | |
| 19 | 95701-06014-08 | BOLT FLANGE 6X14 | 2 | |
