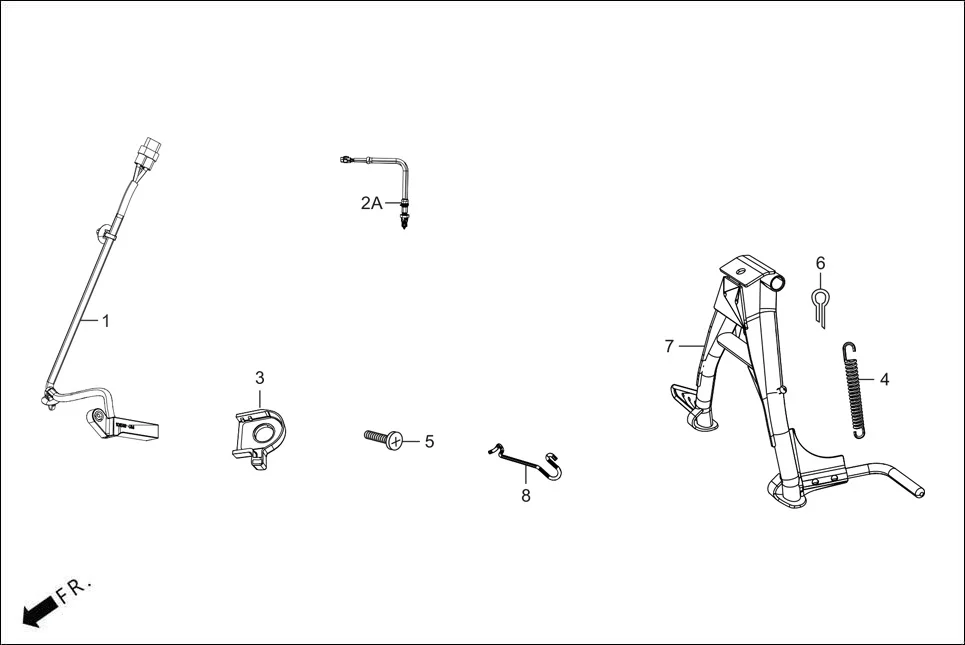

F-18-DISC - MAIN STAND/PEDAL BRAKE
Hero GLAMOUR XTEC 2(Aug.,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35140-ACL-D0099 | SENSOR ASSY SIDE STAND | 1 | |
| 2 | ADJRA7L00000099G | SWITCH STOP REAR ASSY | 1 | |
| 3 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 3 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 4 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 5 | 93891-05014-10 | SCREW WASH,5X14 | 1 | |
| 6 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
| 7 | ADJRF2F002000G | STAND MAIN ASSY | 1 | |
| 8 | ADJRC3G006000G | GUIDE CABLE BRAKE | 1 | |
