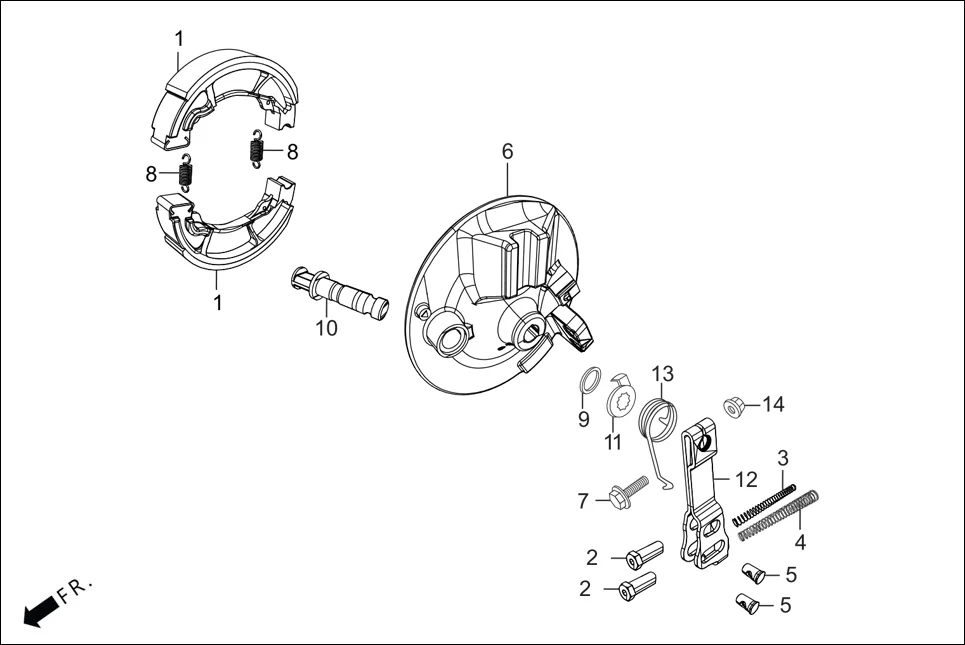

F-8-DRUM - FR. BRAKE PANEL
Hero Glamour Canvas(Oct, 2022) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 2 | 45459-AAL-100 | NUT BRAKE ADJUSTING | 2 | |
| 2 | 45459-AAC-830 | NUT BRAKE ADJUSTING | 2 | |
| 3 | 45456-AAL-100 | SPRING BRK CABLE END | 1 | |
| 4 | 45456-AAW-000 | SPRING BRK CABLE END | 1 | |
| 5 | 43455-AAL-100 | JOINT BRAKE ARM | 2 | |
| 6 | 45100-AAN-L00 | PANEL COMP., FRONT BRAKE. | 1 | |
| 7 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 8 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 9 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 10 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 11 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 12 | 45410-AAH-F00 | ARM, FR. BRAKE | 1 | |
| 13 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
