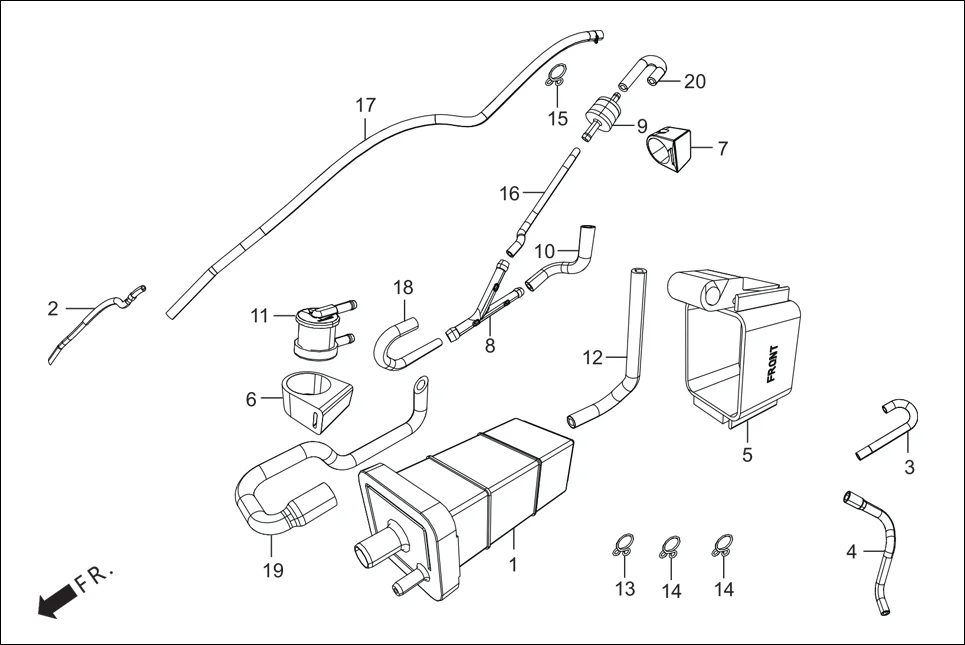

F-13A - CANISTER ASSY
Hero Glamour Canvas(Oct, 2022) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAH-A0099 | CANISTER COMP | 1 | |
| 2 | 17199-AAF-400 | TUBE DRAIN B | 1 | |
| 3 | 17670-AAF-400 | PURGE TUBE A | 1 | |
| 4 | 17671-AAC-800 | TUBE PURGE B | 1 | |
| 5 | 17411-AAG-A00 | SUSP. CANISTER | 1 | |
| 6 | 17421-AAE-100 | SUSP. ROLL OVER VALVE | 1 | |
| 7 | 17432-AAE-100 | SUSP. ONE WAY VALVE | 1 | |
| 8 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 9 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 10 | 17690-AAN-B00 | TUBE A PIPE BREATHER | 1 | |
| 11 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 12 | 17691-AAN-B00 | TUBE A CANISTER | 1 | |
| 13 | 95002-02120 | CLIP, TUBE(B12) | 1 | |
| 14 | 95002-70000 | CLIP, C11 TUBE | 2 | |
| 15 | 95002-02080 | CLIP, TUBE | 12 | |
| 16 | 17693-AAN-B00 | TUBE A J3W | 1 | |
| 17 | 17699-AAF-400 | TUBE DRAIN CANISTER | 1 | |
| 18 | 17694-AAN-B00 | TUBE B J3W | 1 | |
| 19 | 17696-AAF-400 | TUBE BREATHER CANISTER | 1 | |
| 20 | 17695-AAH-A00 | TUBE BREATHER OWV | 1 | |
