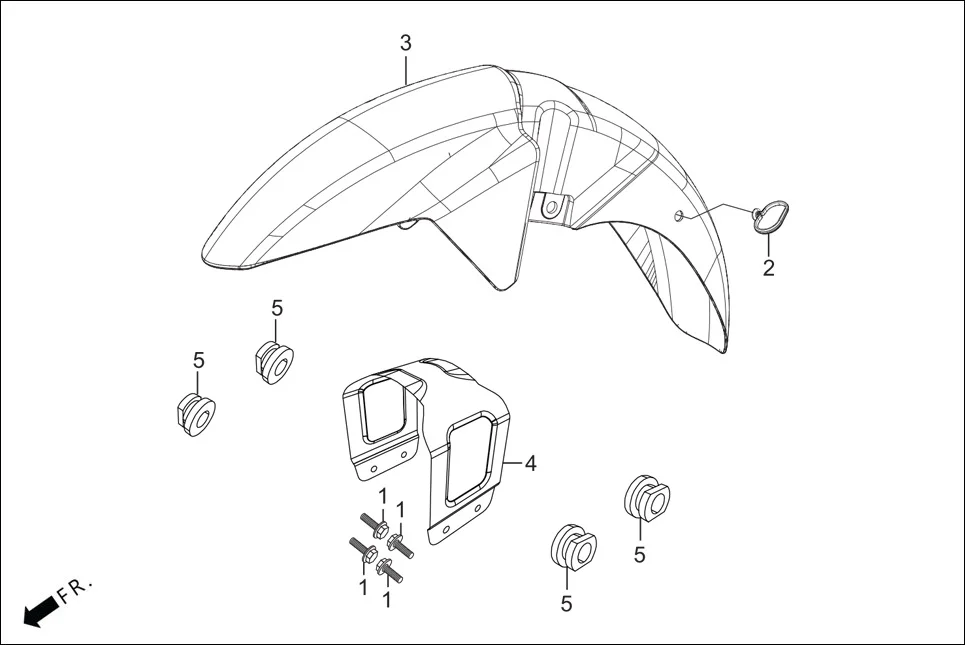

F-6-DRUM - FRONT FENDER
Hero Glamour Canvas(Oct, 2022) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 2 | 45451-AAF-400 | GUIDE, FR. (FENDER) CABLE | 1 | |
| 3 | 61100-ACL-D00X | FENDER FRONT CBR R 195C | 1 | |
| 4 | 61102-AAN-410 | STAY FRONT FENDER | 1 | |
| 5 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 4 | |
