F-30-DISC-MARK CAUTION

HeroGlamour Canvas(Oct, 2022) · 2 parts

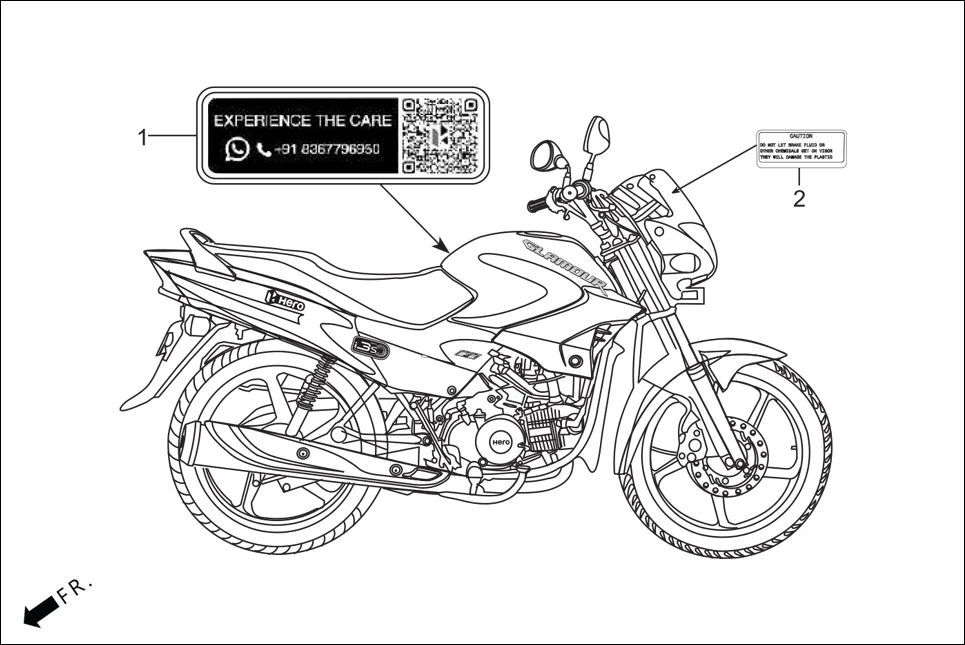

F-30-DISC MARK CAUTION assembly diagram for Hero Glamour Canvas(Oct, 2022)

Parts in This Assembly (2)

Ref #Part NumberDescriptionQty
187570-ACK-000CAUTION STICKER WITH QR CODE & E20 MARK1
287522-MAB-600LABEL, VISOR CAUTION1
