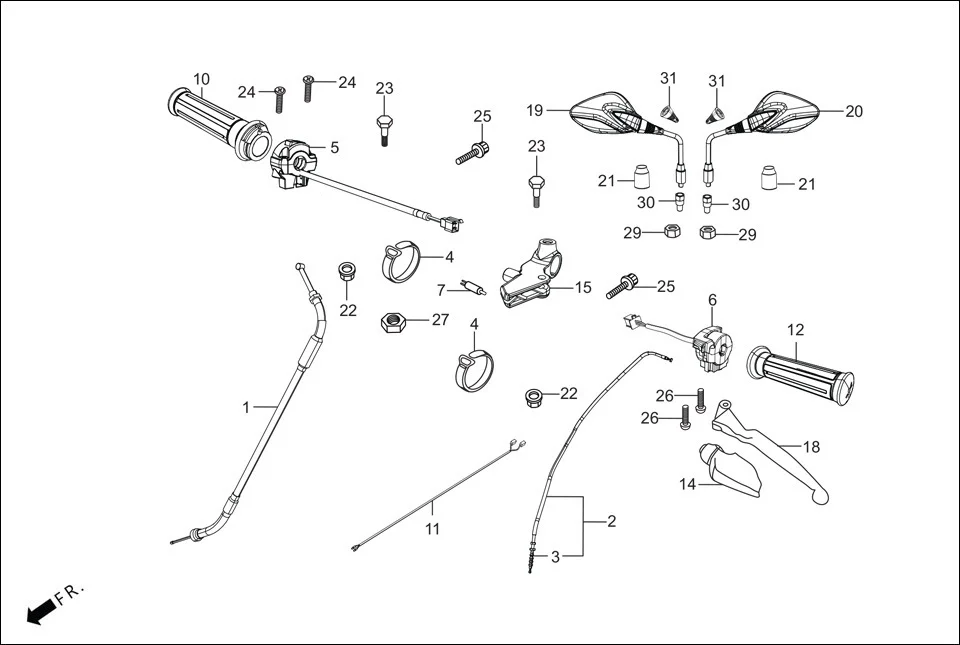

F-3-DISC - HANDLE LEVER/SWITCH/CONTROL CABLE
Hero Glamour Canvas(Oct, 2022) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-AAN-500 | CABLE COMP THROTTLE | 1 | |
| 2 | 22870-AAN-B00 | CABLE COMP., CLUTCH | 1 | |
| 3 | 22871-AAF-400 | BOOT, CLUTCH CABLE | 1 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-AAF-00099 | SW ASSY START & I3S | 1 | |
| 6 | 35200-AAC-B01 | SW ASSY. WINKER | 1 | |
| 7 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 10 | 53140-AAN-B00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 32102-AAG-A00 | SUB CORD | 1 | |
| 12 | 53166-KTC-900 | GRIP L HANDLE | 1 | |
| 14 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 15 | 53172-KTC-920 | BRACKET, L HANDLE LEVER | 1 | |
| 18 | 53178-AAF-H00 | LEVER COMP.L STRG.HNDL. | 1 | |
| 19 | 88110-AAN-410 | MIRROR ASSY., R. BACK | 1 | |
| 20 | 88120-AAN-410 | MIRROR ASSY., L. BACK | 1 | |
| 21 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 23 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 24 | 93500-05022-1G | SCREW, PAN, 5 X 22 | 2 | |
| 25 | 92101-06025-0G | BOLT, HEX 6 X 25 | 2 | |
| 26 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 27 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 29 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 30 | 90003-MY5-720 | BOLT,ADPT.10MM | 2 | |
| 31 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
