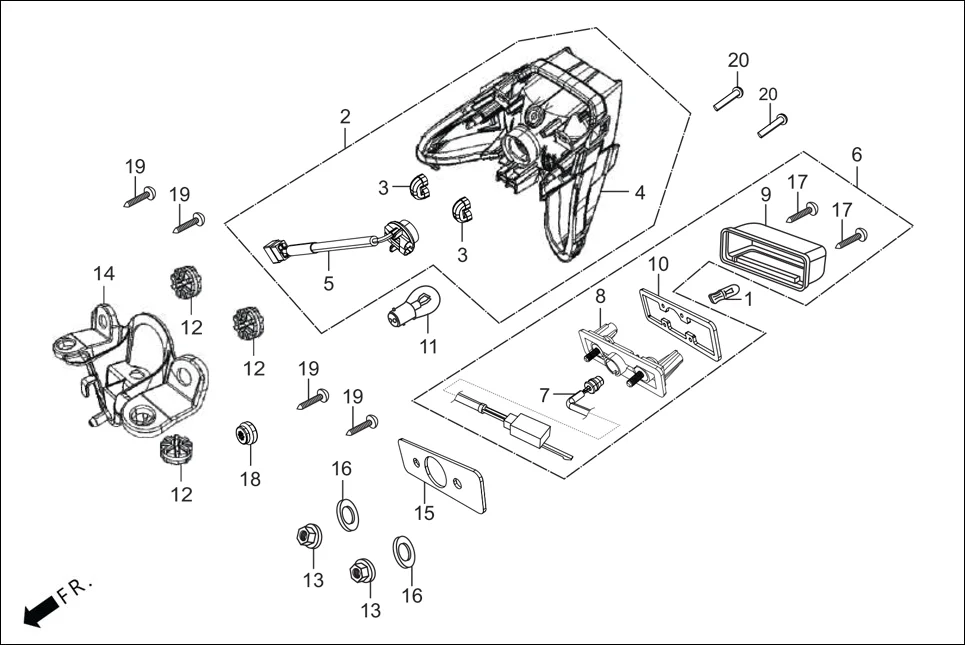

F-23 - TAIL LIGHT
Hero Glamour Canvas(Oct, 2022) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 2 | 3370B-AAN-B0099 | TAIL LIGHT | 1 | |
| 4 | 33702-AAN-B0099 | UNIT COMP TAIL LIGHT | 1 | |
| 5 | 33703-AAN-B0099 | SOCKET COMP | 1 | |
| 6 | 3372B-AAC-801 | LIGHT ASSY., LICENSE (W/O BULB). | 1 | |
| 6 | 3372B-AAN-B01 | LIGHT ASSY., LICENSE (W/O BULB) | 1 | |
| 7 | 33721-AAC-801 | SOCKET COMP.. | 1 | |
| 7 | 33721-AAN-B01 | SOCKET COMP | 1 | |
| 8 | 33722-AAG-00099 | BASE COMP | 1 | |
| 8 | 33722-KVE-900 | BASE COMP. | 1 | |
| 9 | 33723-AAG-00099 | COVER COMP | 1 | |
| 9 | 33723-KVE-900H | COVER COMP. | 1 | |
| 10 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 11 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 12 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 3 | |
| 14 | 77235-AAN-B00 | BRKT TAIL LIGHT TOP ASSY | 1 | |
| 15 | 80203-KVE-900 | RUBBER LICENSE LIGHT | 1 | |
| 16 | 90563-355-000 | WASHER, WHEEL, 6 MM | 2 | |
| 20 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
