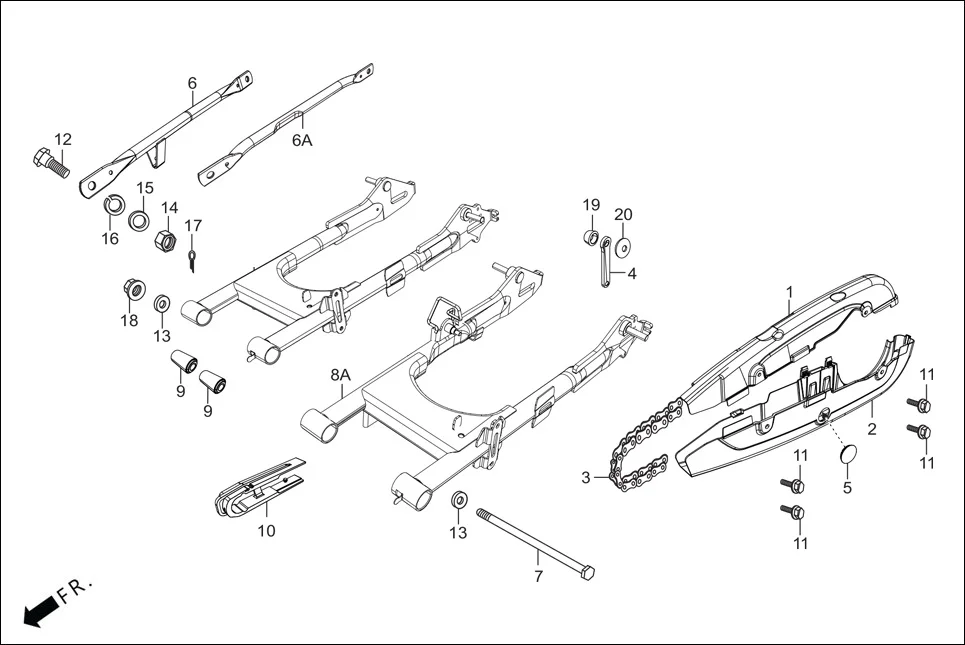

F-19-DISC - REAR FORK/CHAIN CASE/SWINGARM
Hero Glamour Canvas(Oct, 2022) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAF-400 | CASE UP HALF DRIVE CHAIN | 1 | |
| 2 | 4052A-AAF-400 | CHAIN CASE UND HALF SUB ASSY | 1 | |
| 3 | 40530-AAN-B0099 | CHAIN DRIVE (LGB) | 1 | |
| 4 | 52185-AAN-G00 | LINK U-CLAMP | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 43431-AAN-B10 | ARM RR BRAKE STOPPER | 1 | |
| 7 | 52101-KST-940 | BOLT, SWING ARM PIVOT | 1 | |
| 8 | 52110-AAN-B10 | SWINGARM COMP RR | 1 | |
| 9 | 52147-AAF-400 | RUBBER BUSH SWINGARM PIVOT | 2 | |
| 10 | 52170-AAF-400 | SLIDER, CHAIN | 1 | |
| 12 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 13 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 16 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 19 | 52188-AAN-G00 | BUSH LINK | 1 | |
| 20 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
