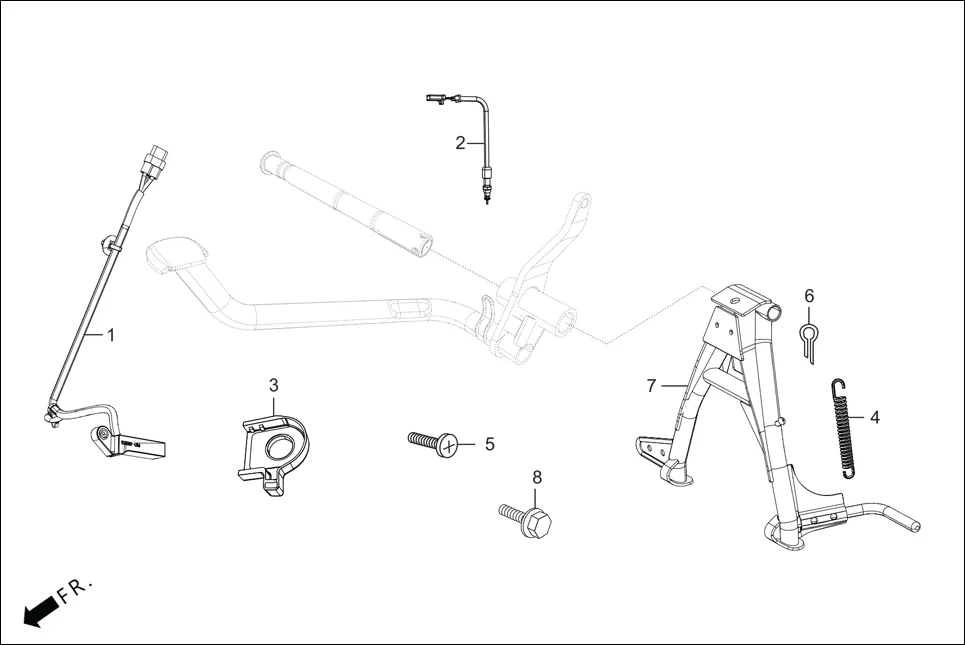

F-18 - MAIN STAND/PEDAL BRAKE
Hero Glamour Canvas(Oct, 2022) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35140-ACL-D0099 | SENSOR ASSY SIDE STAND | 1 | |
| 2 | 35350-KTR-A00 | SWITCH ASSY, REAR STOP | 1 | |
| 3 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 3 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 4 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 5 | 93891-05014-10 | SCREW WASH,5X14 | 1 | |
| 6 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
| 7 | 50500-AAF-400 | STAND COMP., MAIN | 1 | |
