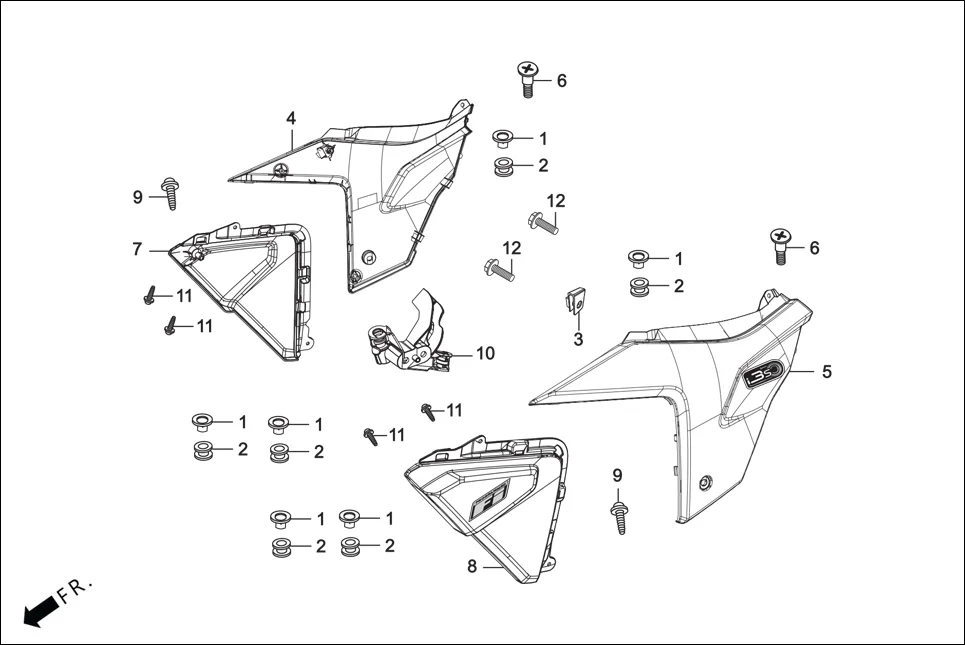

F-14 - SIDE COVER
Hero Glamour Canvas(Oct, 2022) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17509-398-960 | COLLAR, TANK SET | 6 | |
| 2 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 6 | |
| 3 | 90311-KVH-900 | NUT CLIP 6 MM | 1 | |
| 4 | 83500-ADJ-800X | SET R SIDE COVER (CANDY BLAZING RED) | 1 | |
| 5 | 83600-ADJ-800X | SET L SIDE COVER (CANDY BLAZING RED) | 1 | |
| 6 | 90381-AAF-400 | SPECIAL SCREW 6X20 | 2 | |
| 7 | 83550-AAN-B00 | SET COVER FRONT R | 1 | |
| 8 | 83650-AAN-B00 | SET COVER FRONT L | 1 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 10 | 83594-AAN-B00 | SIDE COVER SUPPORT R | 1 | |
| 11 | 93903-24310 | SCREW, TAPPING, 4X12 | 4 | |
| 12 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
