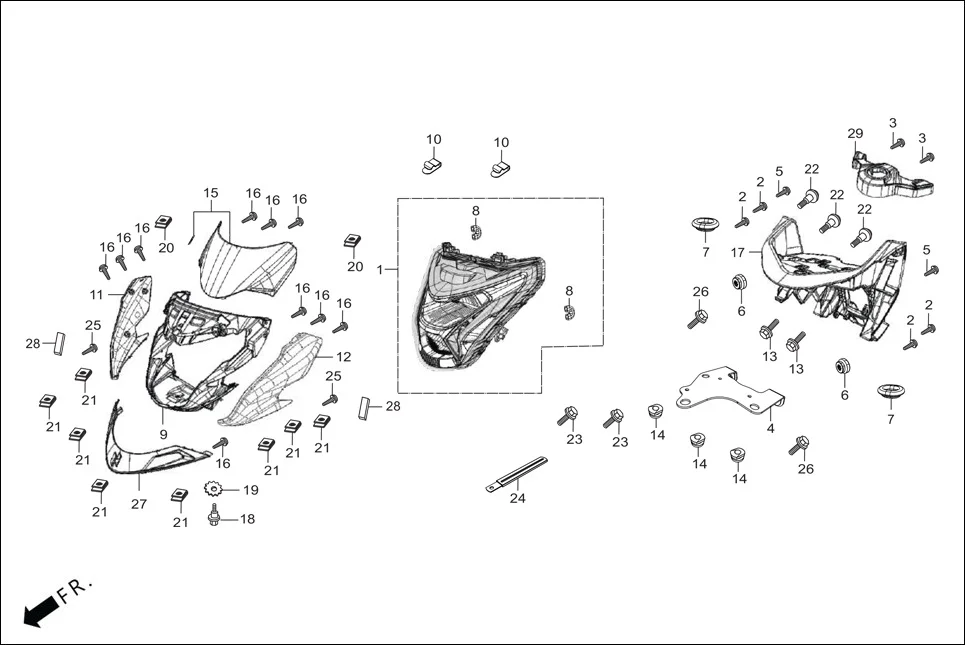

F-1-DISC - HEAD LIGHT
Hero Glamour Canvas(Oct, 2022) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-ACL-D01 | HEAD LIGHT (W/O BULB) | 1 | |
| 2 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 3 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 4 | 61312-AAN-B00 | STAY METER MTG. | 1 | |
| 5 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 6 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 7 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 8 | 33706-ABA-000 | PIPE CP | 2 | |
| 9 | 61301-AAN-B00 | COWL FRONT | 1 | |
| 10 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 11 | 61322-ACL-D00X | SIDE COVER R FRONT COWL (CANDY BLAZING RED) | 1 | |
| 12 | 61323-ACL-D00X | SIDE COVER L FRONT COWL (CANDY BLAZING RED) | 1 | |
| 13 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 14 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 15 | 6414A-AAN-B00 | SCREEN WIND SUB ASSY | 1 | |
| 16 | 93903-24310 | SCREW, TAPPING, 4X12 | 11 | |
| 17 | 83402-AAN-B00 | PANEL INNER | 1 | |
| 18 | 90103-KVH-900 | BOLT, ADJUST | 1 | |
| 19 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 20 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 8 | |
| 22 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 3 | |
| 23 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 24 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 25 | 93500-05012-1G | SCREW,PAN,5 X 12 | 2 | |
| 26 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 27 | 61350-AAN-B00 | SET BEZEL FR COWL | 1 | |
| 28 | 83405-AAN-B00 | CUSHION FR VISOR | 2 | |
| 29 | 53252-AAN-B00 | COVER, MAIN SWITCH | 1 | |
