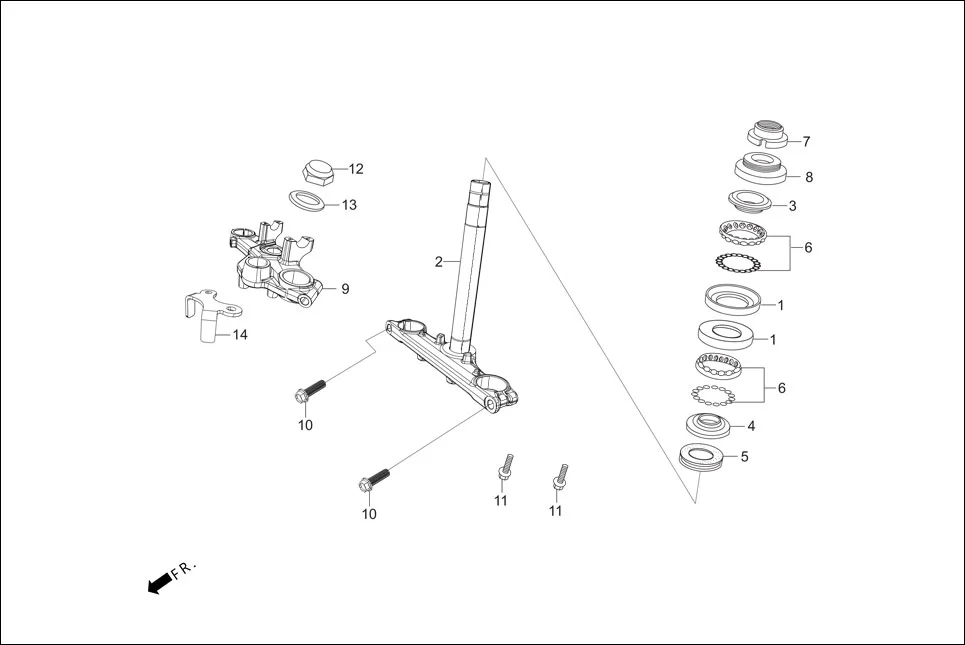

F-6 - FRONT CUSHION (STEERING STEM)
Hero Xpulse 200 (May,2019) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 2 | 53200-ABW-000 | STEM COMP. STEERING | 1 | |
| 3 | 53211-268-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53215-KTR-900 | BALL, ASSY. STEERING | 2 | |
| 7 | 53220-KRY-970 | THREAD COMP STRG TOP. | 1 | |
| 8 | 53222-KTR-900 | MUD GUARD, STEERING HEAD TOP | 1 | |
| 9 | 53230-ABW-000 | BRIDGE FORK TOP | 1 | |
| 10 | 95801-10040-07 | BOLT FLANGE, 10 X 40 | 2 | |
| 11 | 95801-10050-00 | BOLT FLANGE 10X50 | 2 | |
| 12 | 90304-KSP-900 | NUT, STEERING STEM | 1 | |
| 13 | 90503-KTR-900 | WASHER, STEERING STEM | 1 | |
| 14 | 35106-KTC-900 | COVER, COMB. SWITCH | 1 | |
