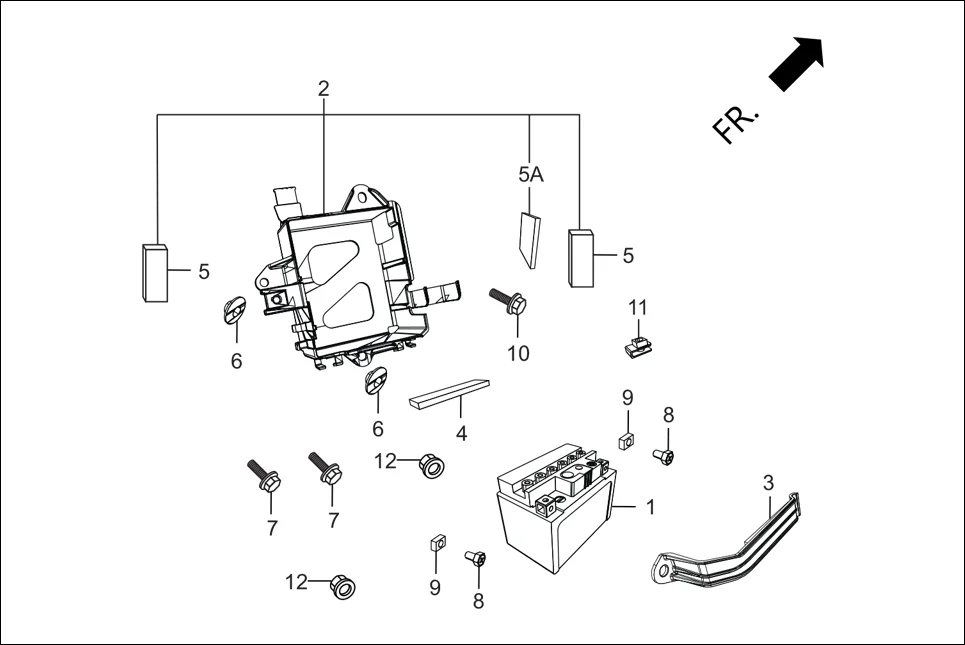

F-24A - BATTERY ASSY.
Hero Xpulse 200 (May,2019) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 2 | 1723A-ABW-000 | BOX BATTERY ASSY | 1 | |
| 3 | 50327-ABW-000 | BAND BATTERY ASSY | 1 | |
| 4 | 83403-ABW-0000-20 | CUSHION BATTERY 1 | 1 | |
| 5 | 83403-AAB-A000-21 | CUSHION BATTERY 2 | 2 | |
| 5 | 83403-ABW-0000-21 | CUSHION BATTERY 2 | 1 | |
| 6 | 61107-KK6-000 | WASHER, 6MM | 2 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 8 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 9 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 10 | 95701-06018-00 | BOLT FLANGE 6X18 | 1 | |
| 11 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 12 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
