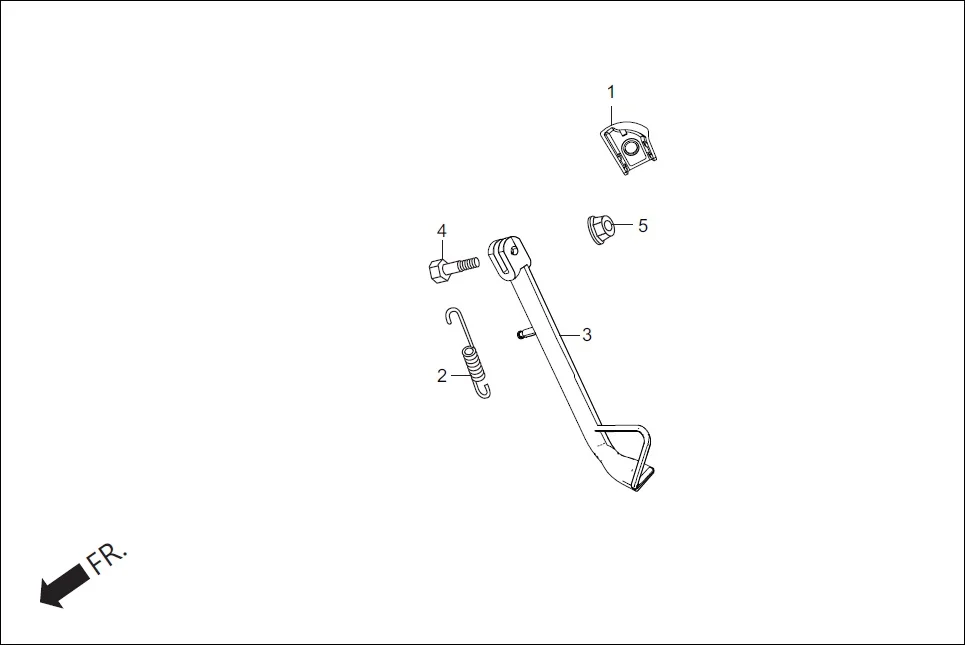

F-18 - CHAIN CASE & STAND
Hero Xpulse 200 (May,2019) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
| 2 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 3 | 50530-ABW-100 | BAR COMP. SIDE STAND | 1 | |
| 4 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 90304-KFN-850 | NUT U 10 MM | 1 | |
