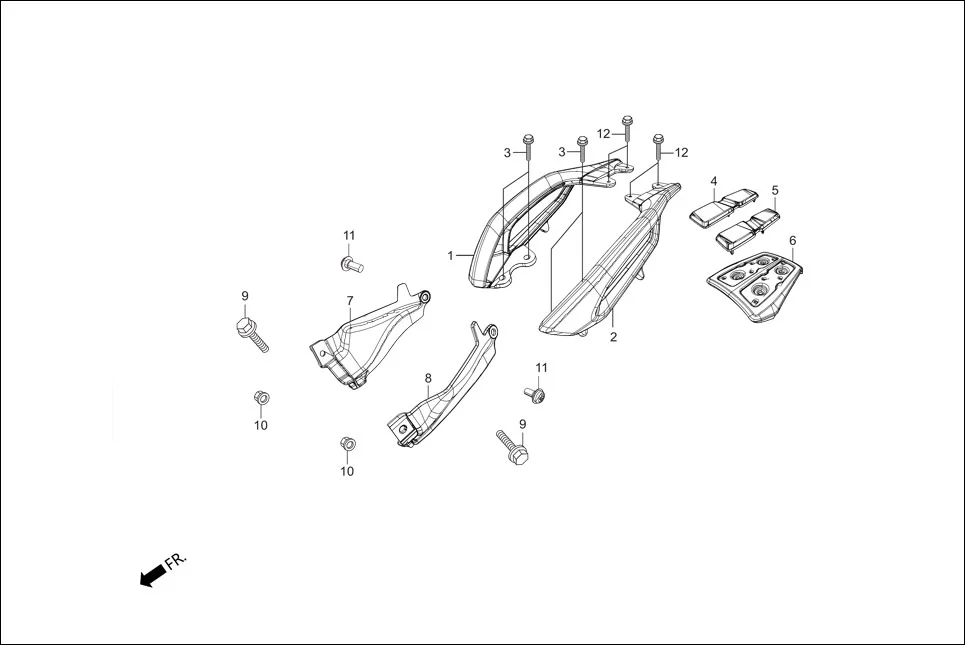

F-25B - GRIP REAR
Hero Xpulse 200 (May,2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-ABW-100 | GRIP R REAR | 1 | |
| 2 | 50450-ABW-100 | GRIP L REAR | 1 | |
| 4 | 81301-ABW-000 | RUBBER GRIP REAR R | 1 | |
| 5 | 81302-ABW-000 | RUBBER GRIP REAR L | 1 | |
| 6 | 81300-ABW-100 | LUGGAGE CARRIER CENTER | 1 | |
| 7 | 77210-ABW-000 | COVER GRIP R | 1 | |
| 8 | 77220-ABW-000 | COVER GRIP L | 1 | |
| 9 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 2 | |
