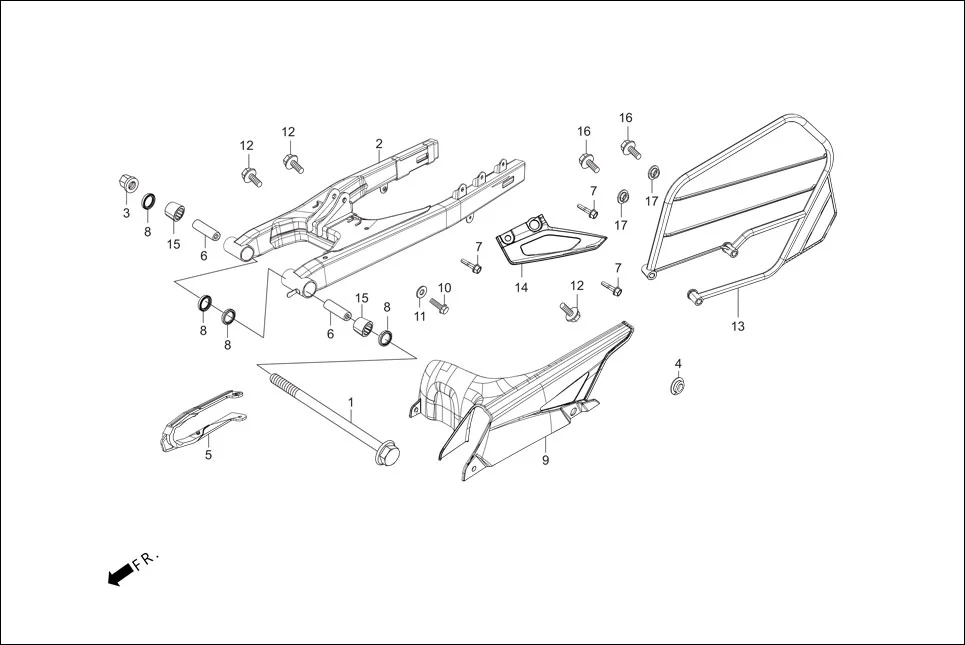

F-18A - SWINGARM / GUARD SAREE / CHAIN CASE
Hero Xpulse 200 (May,2019) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52101-ABW-000 | BOLT, SWINGARM PIVOT | 1 | |
| 2 | 52110-ABW-100 | SWING ARM COMP REAR | 1 | |
| 4 | 90501-ABW-000 | COLLAR, CHAIN CASE | 1 | |
| 5 | 52170-ABW-100 | SLIDER CHAIN | 1 | |
| 6 | 52143-KVE-900 | COLLAR, PIVOT DIST L | 2 | |
| 8 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 4 | |
| 9 | 40510-ABW-100 | CHAIN CASE UPPER | 1 | |
| 11 | 90522-AAB-000 | WASHER, CHAIN CASE SETTING | 1 | |
| 13 | 51103-AAB-A00 | GUARD SAREE | 1 | |
| 14 | 40550-AAB-A00 | GUARD LOWER FINAL DRIVE | 1 | |
| 15 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 16 | 95701-05010-00 | BOLT FLANGE 5X10 | 2 | |
| 17 | 90556-044-000 | WASHER, FENDER SETTING | 2 | |
