F-1 - HEAD LIGHT

Hero Xpulse 200 (May,2019) · 2 parts

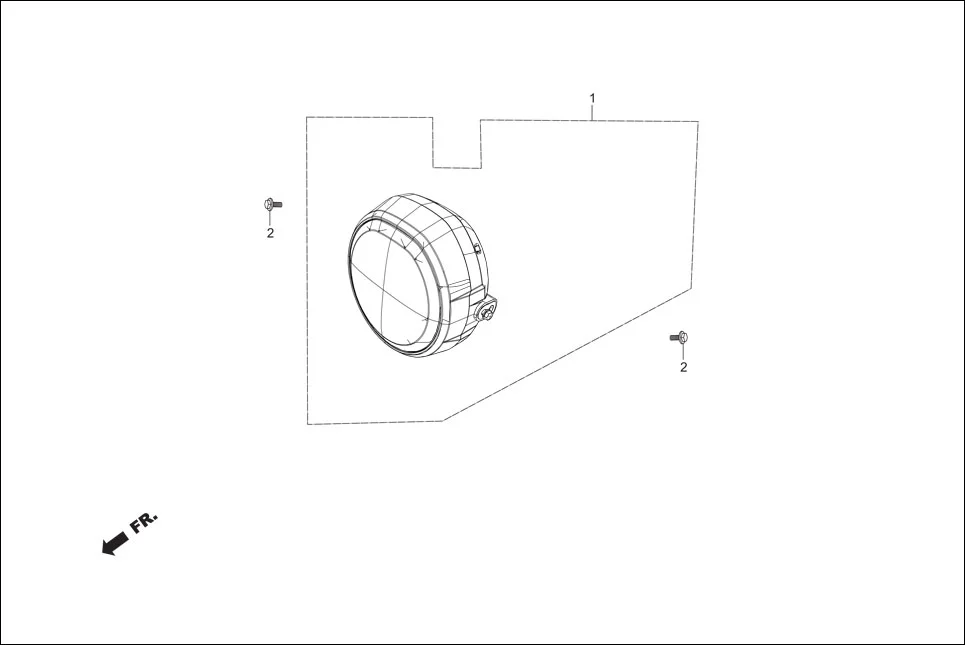

F-1 HEAD LIGHT assembly diagram for Hero Xpulse 200 (May,2019)

Parts in This Assembly (2)

Ref # Part Number Description Qty
1 3310B-ABW-001 LIGHT ASSY HEAD 1
2 96001-06012-00 BOLT,FLANGE,SH,.6 X 12 2
