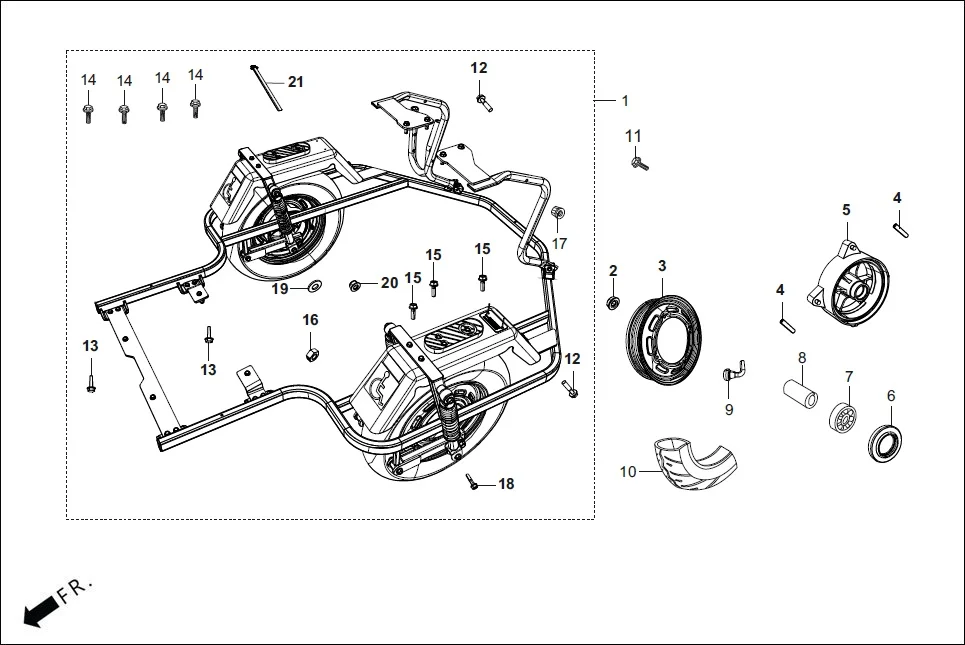

FOP-7 - RETROFITMENT KIT ASSEMBLY(OPTIONAL)
Hero Destini BSVI Prime(Jun,2023) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 99680-ABS-220 | RETROFITMENT KIT ASSEMBLY | 1 | |
| 2 | 90309-KF0-000 | NUT, FLANGE, 8 MM | 8 | |
| 3 | 42702-AAL-110 | RIM COMP WHEEL | 2 | |
| 4 | 90110-KPL-900 | BOLT, STUD, 8X22 | 8 | |
| 5 | 44610-AAL-110 | HUB SUB COMP FR. | 2 | |
| 6 | 90754-KPL-900 | SEAL, DUST 20 X 32 X 5 | 2 | |
| 7 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 8 | 44620-KTP-900 | COLLAR, FR. WHEEL DISTANCE | 2 | |
| 9 | 42753-AAL-001 | RIM,VALVE | 2 | |
| 9 | 42753-AAL-D00 | RIM VALVE | 2 | |
| 10 | 42711-AAL-00099 | TYRE | 2 | |
| 11 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 8 | |
| 12 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 13 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 4 | |
| 14 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 15 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 14 | |
| 16 | 94030-08000 | NUT, HEX., 8 MM | 4 | |
| 17 | 90302-KTE-911 | NUT FLANGE PT 6MM | 14 | |
| 18 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 12 | |
| 19 | 94101-12000 | WASHER, PLAIN, 12MM | 8 | |
| 20 | 90306-KST-942 | NUT, CASTLE, 12 MM | 2 | |
| 21 | 44301-AAW-000 | AXLE FR. WHEEL | 2 | |
