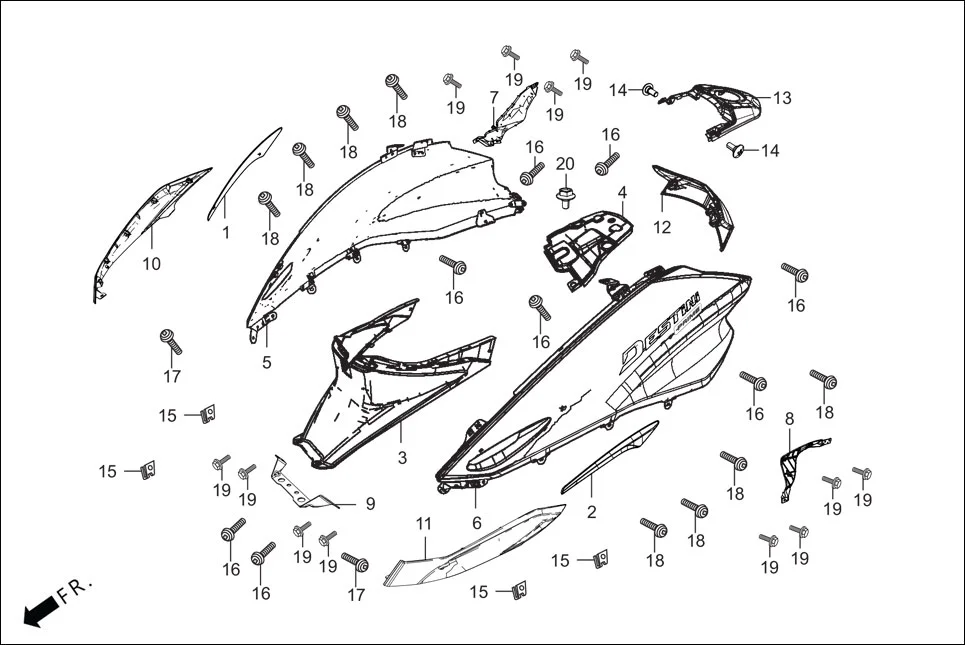

F-8 - BODY COVER
Hero Destini BSVI Prime(Jun,2023) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77248-ABS-000 | GRILL BODY RH. | 1 | |
| 2 | 77258-ABS-000 | GRILL BODY LH | 1 | |
| 3 | 80152-AAY-000 | COVER CENTER | 1 | |
| 4 | 81253-AAY-000 | LUGGAGE BOX B | 1 | |
| 5 | 83300-ABS-D00S | SET R. BODY SIDE (PSW EX SPARKLE ME. WH-004P) | 1 | |
| 5 | 83300-ABS-D00T | SET R. BODY SIDE (NOBLE RED RD-021M) | 1 | |
| 5 | 83300-ABS-D00Y | SET R. BODY SIDE (PSW EX SPARKLE ME. BL(BR)-013M(G)) | 1 | |
| 5 | 83300-ABS-D00R | SET R. BODY SIDE PANTHER BLACK MET. NH-B08M | 1 | |
| 6 | 83400-ABS-D00S | SET L. BODY SIDE (PSW EX SPARKLE ME. WH-004P) | 1 | |
| 6 | 83400-ABS-D00T | SET L. BODY SIDE (NOBLE RED RD-021M) | 1 | |
| 6 | 83400-ABS-D00Y | SET L. BODY SIDE (PSW EX SPARKLE ME. BL(BR)-013M(G)) | 1 | |
| 6 | 83400-ABS-D00R | SET L. BODY SIDE PANTHER BLACK MET. NH-B08M | 1 | |
| 7 | 83506-AAY-000 | TAIL LIGHT SUPPORT R | 1 | |
| 8 | 83507-AAY-000 | TAIL LIGHT SUPPORT L | 1 | |
| 9 | 83529-AAY-000 | PLATE FIXING BODY SIDE | 1 | |
| 10 | 83530-AAY-000 | PLATE R BODY SIDE | 1 | |
| 11 | 83630-AAY-000 | PLATE L BODY SIDE | 1 | |
| 12 | 83700-ABS-300Y | SET COVER RR. CENTER LOWER (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 12 | 83700-ABS-000S | SET COVER RR. CENTER LOWER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 12 | 83700-ABS-000T | SET COVER RR CTR LWR NOBLE RED(RD-021M) | 1 | |
| 12 | 83700-ABS-000R | SET COVER RR. CENTER LOWER (PANTHER BLACK ME.) | 1 | |
| 13 | 83701-ABS-000 | COVER RR CENTER UPPER | 1 | |
| 14 | 90114-AAY-000 | BOLT SPECIAL OVAL 6X15 | 2 | |
