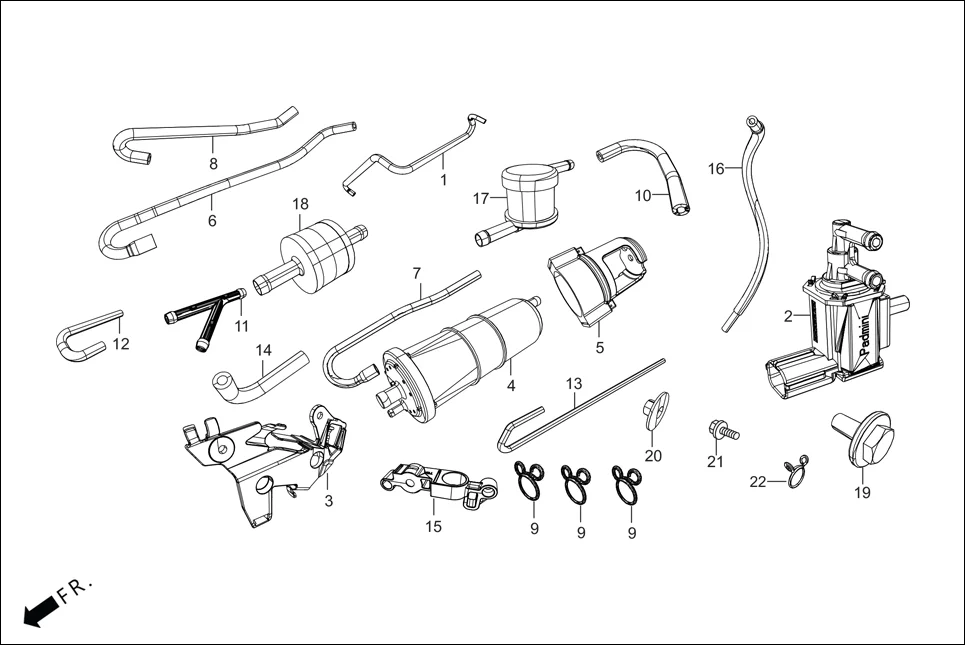

F-13B - CANISTER ASSY.
Hero Destini BSVI Prime(Jun,2023) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17699-ABS-200 | TUBE PURGE VALVE | 1 | |
| 2 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 3 | 17508-AAW-B00 | STAY, CANISTER | 1 | |
| 4 | 17410-AAW-B0099 | CANISTER COMP | 1 | |
| 5 | 17411-AAL-900 | SUSP CANISTER | 1 | |
| 6 | 17692-AAW-B00 | TUBE CANISTER PURGE | 1 | |
| 7 | 17696-AAW-B00 | TUBE CANISTER BREATHER | 1 | |
| 8 | 17691-AAW-B00 | TUBE CANISTER DRAIN | 1 | |
| 9 | 95004-AAL-900 | CLIP TUBE | 3 | |
| 10 | 17690-AAW-B00 | TUBE 3WAY FUEL TANK | 1 | |
| 11 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 12 | 17693-AAW-B00 | TUBE ROLL OVER 3WAY JOINT | 1 | |
| 13 | 17697-AAW-B00 | TUBE ROLLOVER CANISTER | 1 | |
| 14 | 17694-AAW-B00 | TUBE ONE WAY 3WAY JOINT | 1 | |
| 15 | 17422-AAW-B00 | STAY RUBBER EVAPO VALVE | 1 | |
| 16 | 17695-AAW-B00 | TUBE BREATHER ONE WAY VALVE | 1 | |
| 17 | 17420-AAE-100 | ROLL OVER VALVE | 1 | |
| 18 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 19 | 90022-GFP-900 | BOLT WASHER 6×16 | 1 | |
| 20 | 83518-AAW-B00 | COLLAR, CANISTER STAY | 1 | |
| 21 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 22 | 95002-02070 | CLIP, B-7 TUBE | 1 | |
