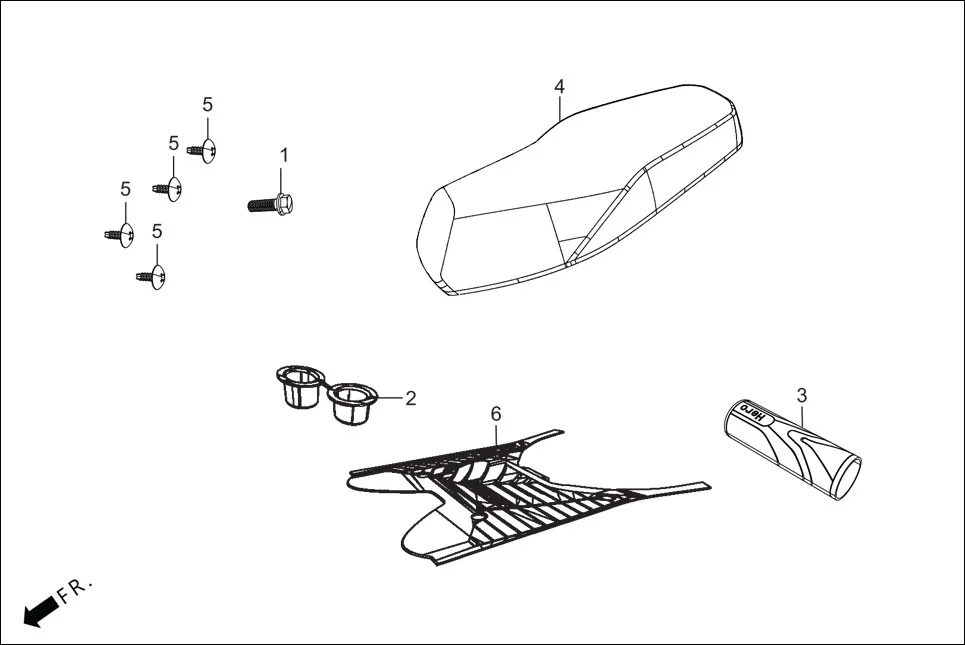

FOP-5 - FLOOR MAT ASSY / COVER ASSY. SEAT / GRIP COVER (OPTIONAL)
Hero Destini BSVI Prime(Jun,2023) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
| 2 | NOT SERVICEABLE | GUARD ENGINE | 1 | |
| 3 | 99620-ABS-201 | GRIP COVER E | 1 | |
| 4 | 99630-ABS-001 | COVER ASSY SEAT | 1 | |
| 4 | 99631-ABS-001 | COVER ASSY SEAT | 1 | |
| 4 | 99632-ABS-001 | COVER ASSY SEAT | 1 | |
| 4 | 99634-ABS-001 | COVER ASSY SEAT | 1 | |
| 4 | 99643-ABS-001 | COVER ASSY. SEAT | 1 | |
| 4 | 99635-ABS-001 | SEAT COVER DESTINI22 RED PIPING | 1 | |
| 4 | 99636-ABS-001 | SEAT COVER DESTINI22 BLK EMBOSED | 1 | |
| 4 | 99637-ABS-001 | SEAT COVER DESTINI22 SLVR STRIPE | 1 | |
| 4 | 99638-ABS-001 | SEAT COVER DESTINI22 SPL EDITION | 1 | |
