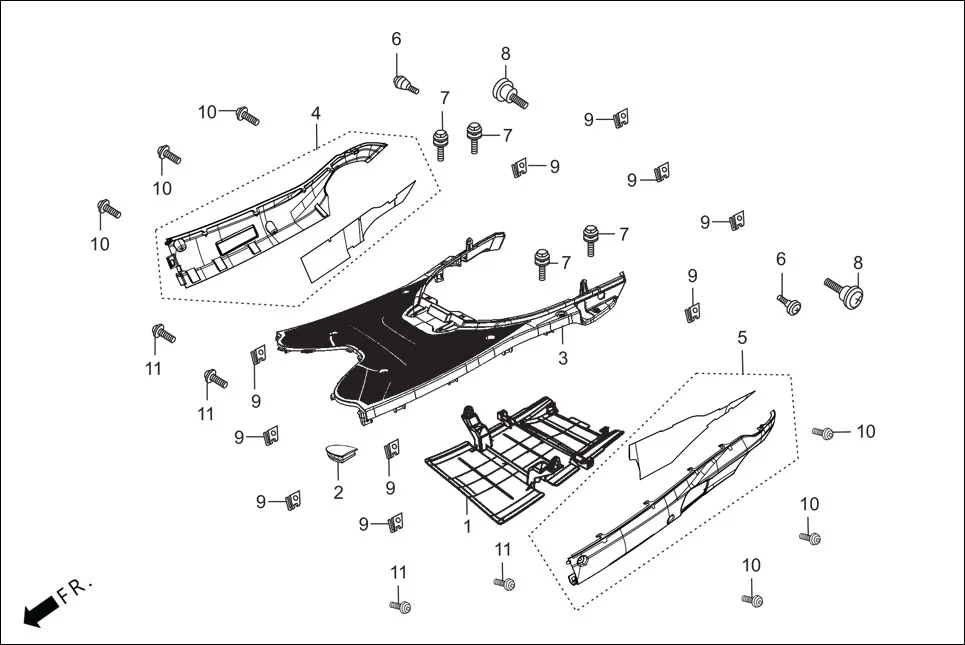

F-7 - FLOOR PANEL
Hero Destini BSVI Prime(Jun,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-ABS-200 | UNDER COVER LOWER | 1 | |
| 2 | 64150-AAY-000 | PANEL FLOOR RUBBER CAP | 1 | |
| 3 | 64310-ABS-000 | PANEL FLOOR | 1 | |
| 4 | 6432A-ABS-300Y | COVER R FLOOR SIDE SUB ASSY (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 4 | 6432A-ABS-200S | COVER R FLOOR SIDE SUB ASSY (PSW EX SPARKLE ME.) | 1 | |
| 4 | 6432A-ABS-200T | COVER R FLOOR SIDE SUB ASSY (NOBLE RED) | 1 | |
| 4 | 6432A-ABS-200R | COVER R FLOOR SIDE SUB ASSY (PANTHER BLACK ME.) | 1 | |
| 5 | 6433A-ABS-300Y | COVER L FLOOR SIDE SUB ASSY (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 5 | 6433A-ABS-200S | COVER L FLOOE SIDE SUB ASSY (PSW EX SPARKLE ME.) | 1 | |
| 5 | 6433A-ABS-200T | COVER L FLOOE SIDE SUB ASSY (NOBLE RED) | 1 | |
| 5 | 6433A-ABS-200R | COVER L FLOOE SIDE SUB ASSY (PANTHER BLACK ME.) | 1 | |
| 6 | 90101-087-720 | SCREW, HEAD LIGHT SET | 2 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 8 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 9 | 90344-AAW-000 | NUT CLIP 5MM | 10 | |
| 10 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
| 11 | 93903-35380 | SCREW TAPPING 5X16 | 4 | |
