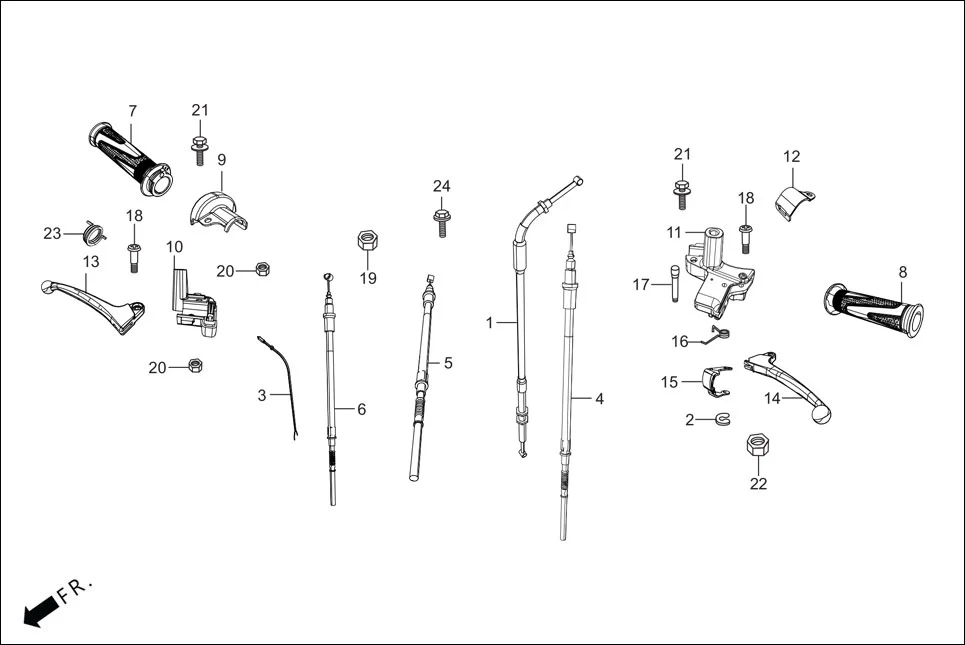

F-3A - HNDL.& HNDL.COVER
Hero Destini BSVI Prime(Jun,2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ABS-B0099 | CABLE COMP THROTTLE | 1 | |
| 2 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 3 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 2 | |
| 4 | 43450-AAY-000 | CABLE COMP. RR BRK | 1 | |
| 5 | 45440-AAL-100 | CABLE COMP LH FR BRK | 1 | |
| 6 | 45450-AAY-000 | CABLE COMP RH FR BRK | 1 | |
| 7 | 53140-AAW-000 | GRIP COMP., THROT. | 1 | |
| 8 | 53166-AAW-000 | GRIP L HANDLE | 1 | |
| 9 | 53167-AAW-300 | HOUSING, UPP., THROT. | 1 | |
| 10 | 53168-AAW-000 | HOUSING UND.THROTTLE | 1 | |
| 11 | 53172-AAL-100 | BRKT HANDLE | 1 | |
| 12 | 53173-KPL-900 | BAND, HANDLE BRKT | 1 | |
| 13 | 53175-AAW-000 | LEVER R STRG.HANDLE | 1 | |
| 14 | 53178-AAL-100 | LEVER L HANDLE | 1 | |
| 15 | 53181-AAL-100 | LEVER COMP PARKING | 1 | |
| 16 | 53182-AAL-100 | SPRING RETURN LEVER | 1 | |
| 17 | 53183-GW3-980 | PIN, PIVOT, PARKING LEVER | 1 | |
| 18 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
| 19 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 20 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 21 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 22 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 23 | 94203-AAW-000 | SPRING HANDLE LEVER | 1 | |
| 24 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
