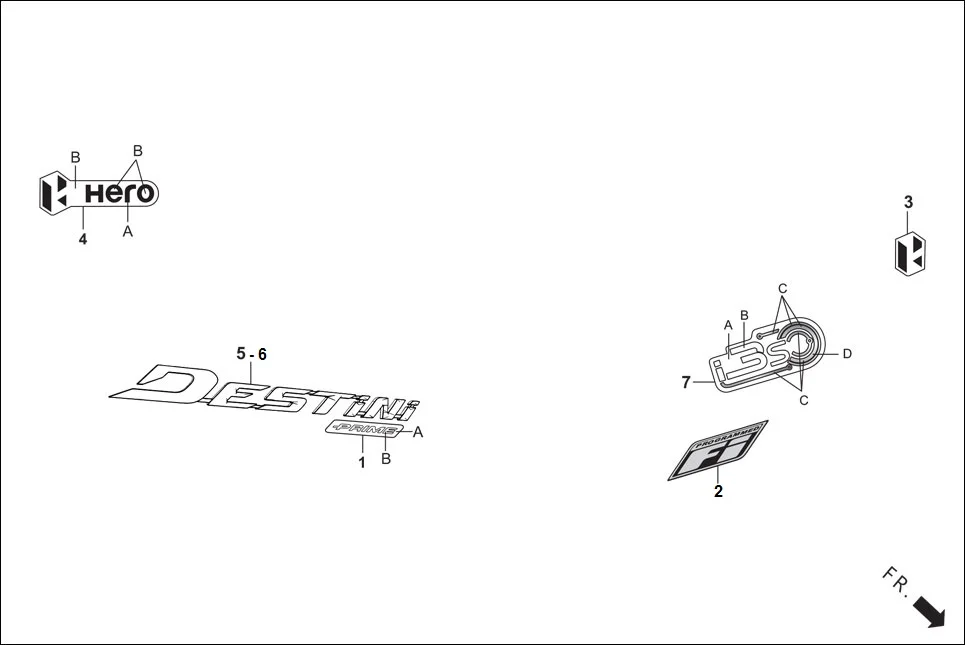

F-26 - MARK/STRIPE
Hero Destini BSVI Prime(Jun,2023) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86231-ABS-D00R | MARK PRIME RH (TYPE-1) | 2 | |
| 2 | 85405-ACV-500 | PROGRAMMED FI DOMING R | 1 | |
| 3 | 86830-ABH-200V | EMBLEM H MARK | 1 | |
| 3 | 86830-AAF-400T | EMBLEM WINDSCREEN | 1 | |
| 3 | 86830-AAF-400Y | EMBLEM WINDSCREEN | 1 | |
| 3 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 4 | 86533-ABS-000R | MARK, COVER RR. CENTER LOWER (TYPE-1) | 1 | |
| 4 | 86533-ABS-000S | MARK, COVER RR. CENTER LOWER (TYPE-2) | 1 | |
| 5 | 86833-ABS-D00 | EMBLEM R. BODY COVER | 1 | |
| 6 | 86834-ABS-D00 | EMBLEM L. BODY COVER | 1 | |
| 7 | 86216-ABS-000R | MARK, I3S COVER FR. (TYPE-1) | 1 | |
| 7 | 86216-ABS-000S | MARK, I3S COVER FR. (TYPE-2) | 1 | |
