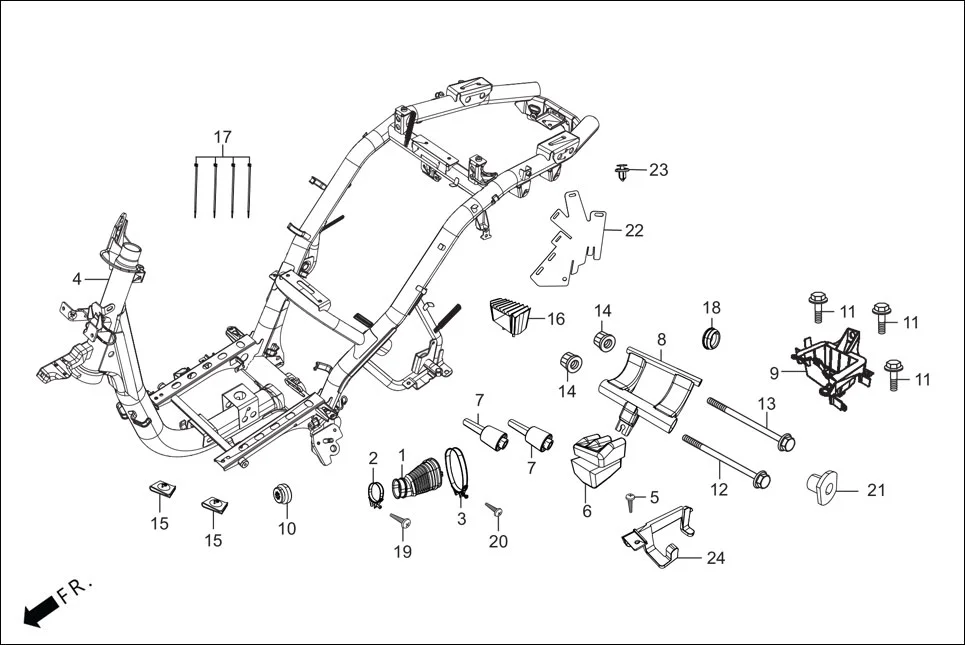

F-23 - FRAME BODY
Hero Destini BSVI Prime(Jun,2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-AAW-300 | DUCT L. COVER | 1 | |
| 2 | 11346-AAW-000 | BAND L COVER DUCT | 1 | |
| 3 | 11347-AAW-300 | BAND L COVER DUCT | 1 | |
| 4 | 50100-ABS-300 | FRAME BODY COMP. | 1 | |
| 5 | 93903-25180 | SCREW, TAPPING, 5 X 10 | 1 | |
| 6 | 50352-AAW-B00 | RUBBER, LINK STOPPER | 1 | |
| 7 | 50353-AAW-000 | BUSH RUBBER ,ENG HANGER | 2 | |
| 8 | 50355-AAW-B00 | LINK, SUB ASSY., ENG. HANGER | 1 | |
| 9 | 50381-ABS-200 | BATTERY BOX | 1 | |
| 10 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 1 | |
| 11 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 12 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 13 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 14 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 15 | 90344-AAW-000 | NUT CLIP 5MM | 2 | |
| 16 | 83409-AAY-400 | CUSHION, TANK BOTTOM SIDE | 1 | |
| 17 | 90657-AAW-300 | CABLE TIE (LONG) | 4 | |
| 18 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 19 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 20 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 21 | 90311-AAA-000 | NUT REAR FENDER | 1 | |
| 22 | 80102-AAW-300 | PLATE, FRAME, BODY SPLASH GUARD | 1 | |
| 23 | 90683-AAW-300 | CLIP TRIM. | 1 | |
| 24 | 50384-ABS-200 | ECU BRACKET | 1 | |
