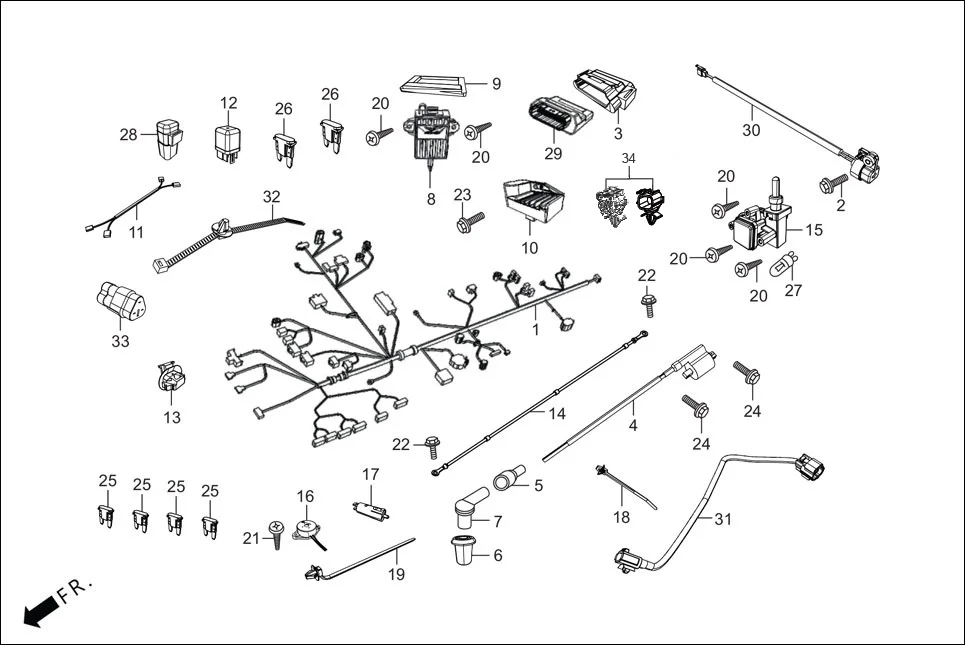

F-22 - ELECTRICALS (WIRE HARNESS)
Hero Destini BSVI Prime(Jun,2023) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-ABS-D00 | HARNESS WIRE | 1 | |
| 2 | 95701-05025-00 | BOLT FLANGE 5X25 | 1 | |
| 3 | 38771-ABS-B00 | CUSHION PGM FI IGN UNIT | 1 | |
| 4 | 30510-AAW-001 | COIL COMP. IGNITION | 1 | |
| 5 | 30604-KTP-890 | CAP, CORD WATER PROOF. | 1 | |
| 6 | 30605-KTP-951 | SEAL, H/T TERMINAL | 1 | |
| 7 | 30700-KTP-951 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 8 | 31300-AAW-001 | USB CHARGER ASSY | 1 | |
| 9 | 31301-AAW-001 | GASKET, USB CHARGER | 1 | |
| 10 | 31600-AAE-B01 | REG. RECT. COMP | 1 | |
| 11 | 32101-AAY-000 | SUB HARNESS (FUEL LID SWITCH) . | 1 | |
| 12 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 13 | 91541-HMC-200 | CLIP FUSE BOX | 1 | |
| 14 | 32603-KPL-780 | CABLE, ENG-FRM. EARTH | 1 | |
| 15 | 33200-AAW-301 | LIGHT ASSY., BOOT. | 1 | |
| 16 | 33470-AAY-001 | ELECTRONIC BEEPER | 1 | |
| 17 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 19 | 91540-AAN-410 | CLIP, BAND HARN | 6 | |
| 25 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 26 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 27 | 34911-AAW-301 | LED BULB WHITE WEDGE BASE | 1 | |
| 28 | 38506-AAW-301 | SUSP. START RELAY | 1 | |
| 29 | 38770-ABS-D01 | UNIT COMP ECU | 1 | |
| 30 | 35160-ABS-20099 | SENSOR ASSY BANK ANGLE | 1 | |
| 31 | 32102-ABS-200 | SUB CORD PURGE VALVE | 1 | |
| 32 | 90662-HMC-901 | HARNESS, BAND | 1 | |
| 33 | 35400-ABH-500 | RESISTOR COMP | 1 | |
