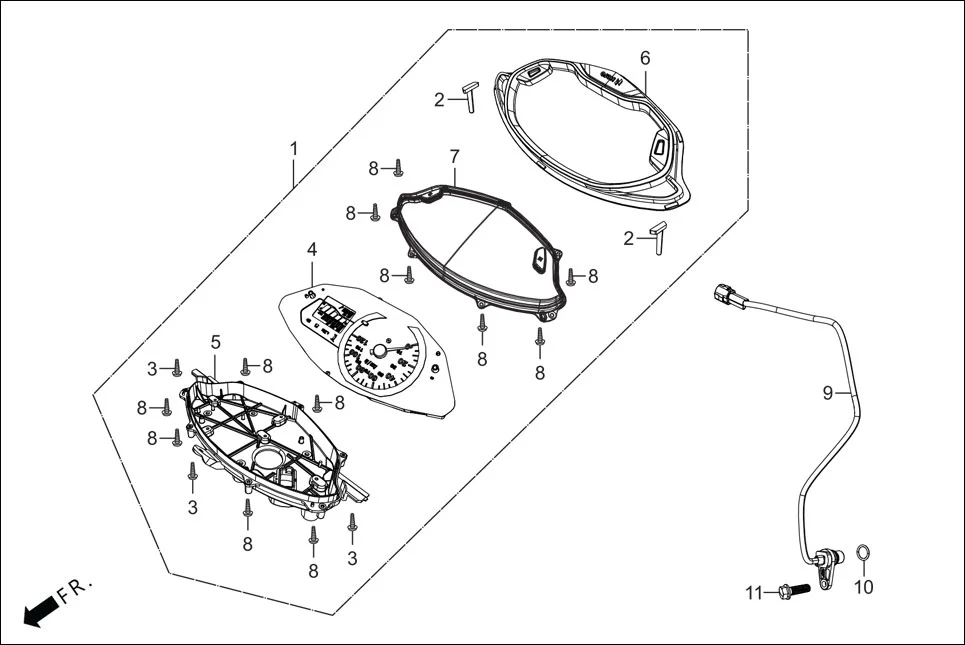

F-2 - HANDLE COVER (SPEEDOMETER ASSY.)
Hero Destini BSVI Prime(Jun,2023) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37200-ABS-311 | SPEEDOMETER ASSY | 1 | |
| 2 | 37203-ABS-301 | KEY TOP | 1 | |
| 3 | 93903-35380 | SCREW TAPPING 5X16 | 3 | |
| 5 | 37212-ABS-301 | CASE UNDER ASSY | 1 | |
| 6 | 37213-ABS-301 | GLASS ASSY | 1 | |
| 7 | 37302-ABS-301 | REFLECTOR ASSY | 1 | |
| 8 | 93903-22480 | SCREW TAPPING 3 X 16 | 13 | |
| 9 | 37700-ABH-501 | SPEED SENSOR ASSY | 1 | |
| 10 | 37701-AAN-B01 | ORING SPEED SENSOR | 1 | |
| 11 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
