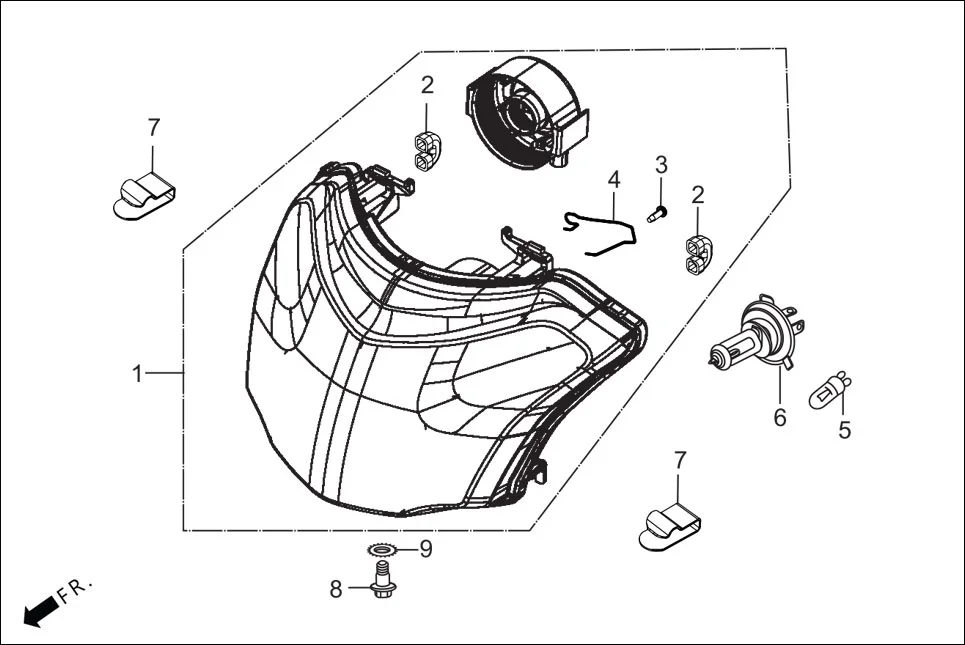

F-1 - HEAD LIGHT
Hero Destini BSVI Prime(Jun,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-ABS-201 | LIGHT ASSY HEAD | 1 | |
| 2 | 33706-ABA-000 | PIPE CP | 2 | |
| 3 | 93901-34210 | SCREW,TAPPING, 4 X 10 | 1 | |
| 4 | 33108-KRY-900 | SPRING, SPC(BULB HOLDER) | 1 | |
| 5 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 6 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 8 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 9 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
