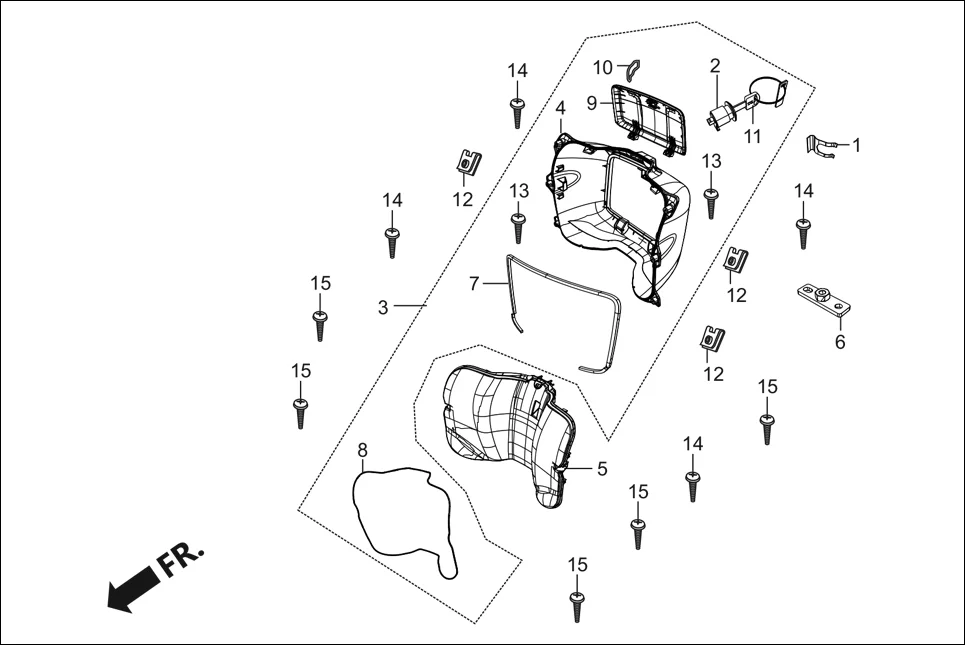

FOP-2-FR. INNER BOX (OPTIONAL)
HeroDestini 125 (Oct, 2018) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 2 | 77232-AAW-000 | LOCK ASSY. INNER BOX | 1 | |
| 3 | 81130-ABS-000 | BOX ASSY INNER | 1 | |
| 4 | 81134-ABS-000 | OUTER INNER BOX. | 1 | |
| 5 | 81135-ABS-000 | INNER INNER BOX | 1 | |
| 6 | 81136-ABS-000 | STAY INNER BOX ASSY | 1 | |
| 7 | 81137-ABS-000 | SEAL INNER BOX | 1 | |
| 8 | 81138-ABS-000 | SEAL OUTER INNER | 1 | |
| 9 | 81141-ABS-000 | LID INNER BOX | 1 | |
| 10 | 81143-AAW-300 | PIN LID INNER BOX | 2 | |
| 11 | 81145-AAW-000 | KEY SET INNER BOX | 1 | |
| 12 | 90344-AAW-000 | NUT CLIP 5MM | 3 | |
| 13 | 93903-25580 | SCREW TAPPING 5X25 | 2 | |
| 14 | 93903-25880 | SCREW TAPPING 5X40 | 4 | |
| 15 | 93903-25380 | SCREW TAPPING 5X16 | 5 |
