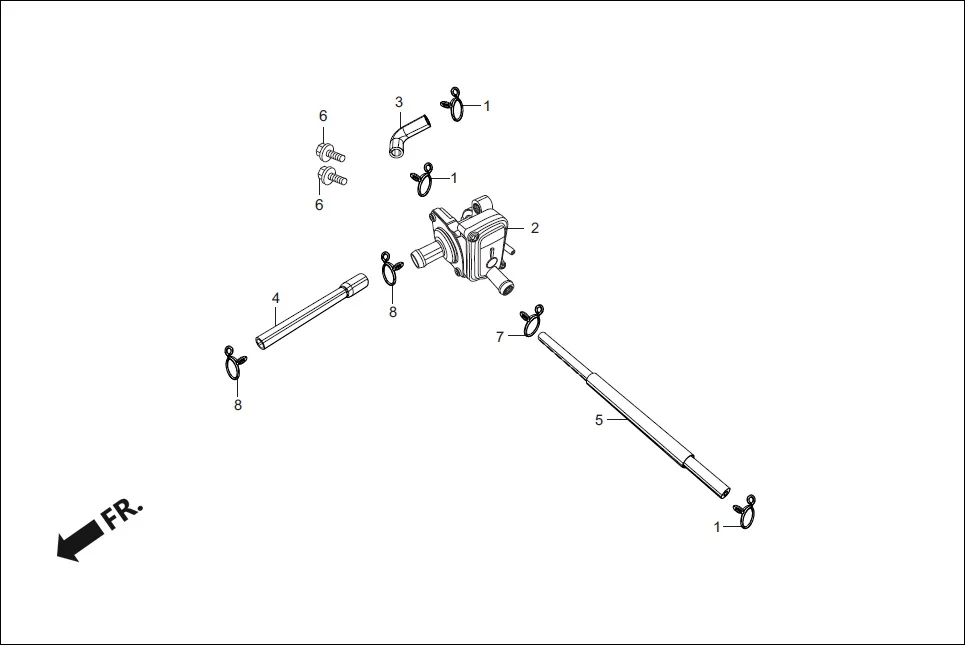

F-15A - AIR SUCTION VALVE
Hero Destini 125 (Oct, 2018) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-611-000 | CLIP, BREATHER TUBE | 3 | |
| 2 | 18600-AAW-301 | VALVE ASSY.AIR SUCTION | 1 | |
| 3 | 18651-AAW-000 | TUBE ASV | 1 | |
| 4 | 18652-ABG-200 | HOSE ASV | 1 | |
| 5 | 18653-AAW-000 | TUBE ASV VACUUM | 1 | |
| 6 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 7 | 91462-KM7-910 | CLIP, TUBE | 1 | |
| 8 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
