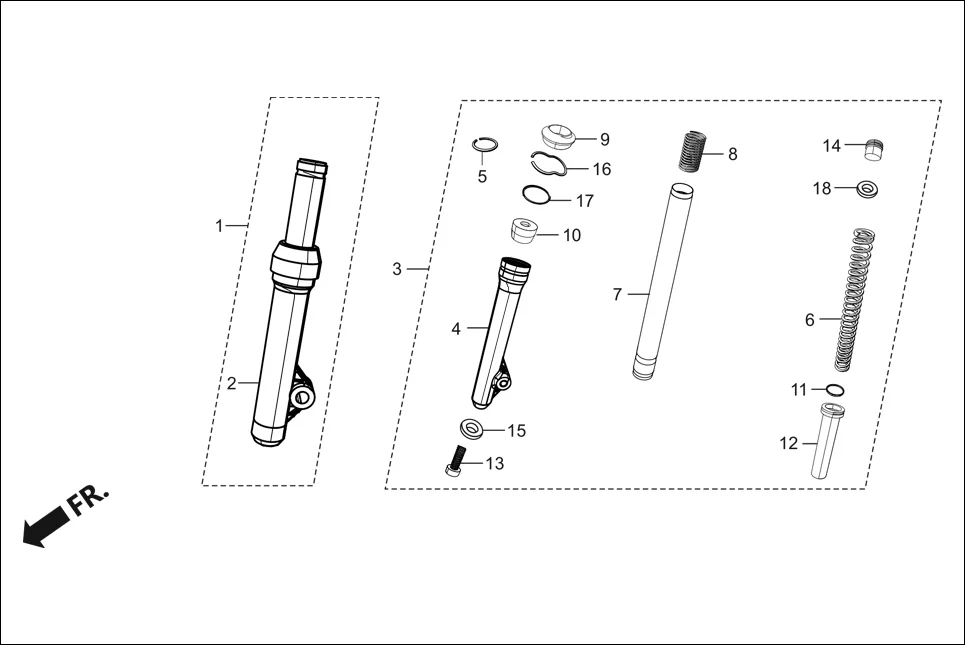

F-9A - FRONT CUSHION
Hero Destini 125 (Oct, 2018) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-ABS-000 | FORK ASSY R FRONT | 1 | |
| 2 | 51420-ABS-000 | CASE FR R BOTTOM | 1 | |
| 3 | 51500-ABS-000 | FORK ASSY L FRONT | 1 | |
| 4 | 51520-ABS-000 | CASE FR L BOTTOM. | 1 | |
| 5 | 51400-AAW-3000-20 | RING STOPPER. | 2 | |
| 6 | 51401-AAY-300 | SPRING FR FORK | 2 | |
| 7 | 51410-AAW-300 | PIPE COMP FR FORK | 2 | |
| 8 | 51412-KSP-901 | SPRING, REBOUND | 2 | |
| 9 | 51425-KST-901 | SEAL, DUST | 2 | |
| 10 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-KVN-901 | RING, PISTON | 2 | |
| 12 | 51440-AAW-001 | PIPE SEAT | 2 | |
| 13 | 90116-AAW-001 | BOLT SOCKET 8 MM | 2 | |
| 14 | 90123-AAW-300 | BOLT FR FORK | 2 | |
| 15 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 16 | 90601-GF5-730 | RING, OIL SEAL STOPPER | 2 | |
| 17 | 91255-169-000R | OIL SEAL, 30 X 42 X 11 | 2 | |
| 18 | 91356-AAW-300 | O-RING 19.4X2.8 | 2 | |
