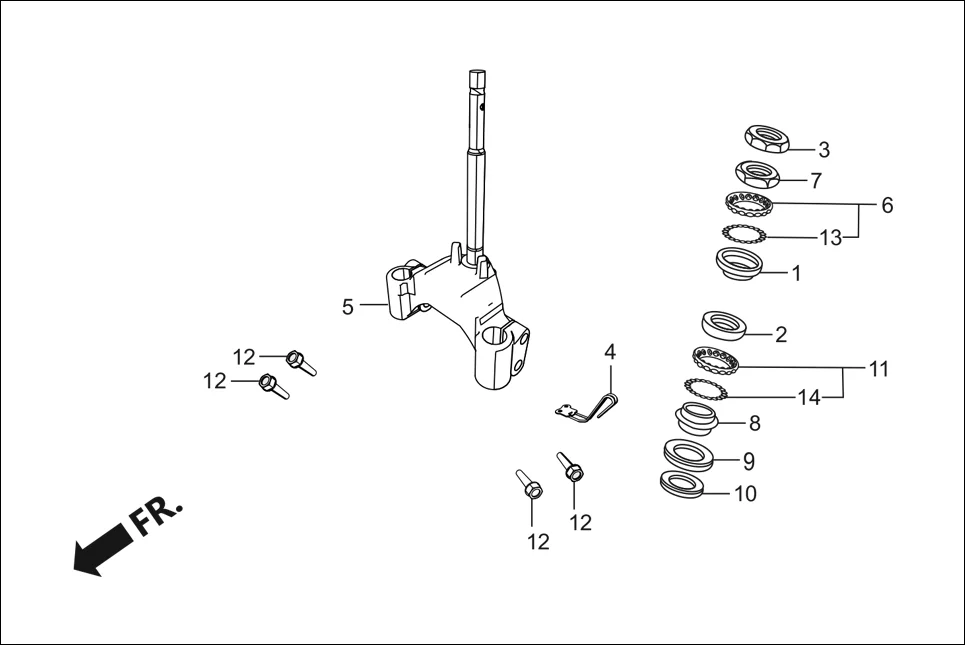

F-9 - FRONT CUSHION (STRG. STEM)
Hero Destini 125 (Oct, 2018) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 2 | 50302-KPL-900 | RACE, STRG., BOTTOM BALL | 1 | |
| 3 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 4 | 51501-AAY-000 | BRKT CABLE GUIDE | 1 | |
| 5 | 53200-ABS-000 | STEM COMP STRG | 1 | |
| 6 | 53210-KTP-900 | BALL, ASSY, STRG. | 1 | |
| 7 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 8 | 53212-250-010 | RACE, STRG. BOTTOM CONE | 1 | |
| 9 | 53214-250-000 | DUST, SEAL STRG. (HEAD) | 1 | |
| 10 | 53215-KPL-900 | WASHER, STRG. HEAD DUST SEAL | 1 | |
| 11 | 53215-KTP-900 | BALL ASSY, STRG. | 1 | |
| 12 | 90001-AAW-000 | BOLT FLANGE BRIDGE FORK MTG. | 4 | |
| 13 | 96211-05000 | BALL, STEEL #5 | 1 | |
| 14 | 96211-08000 | BALL STEEL 8 MM | 1 | |
