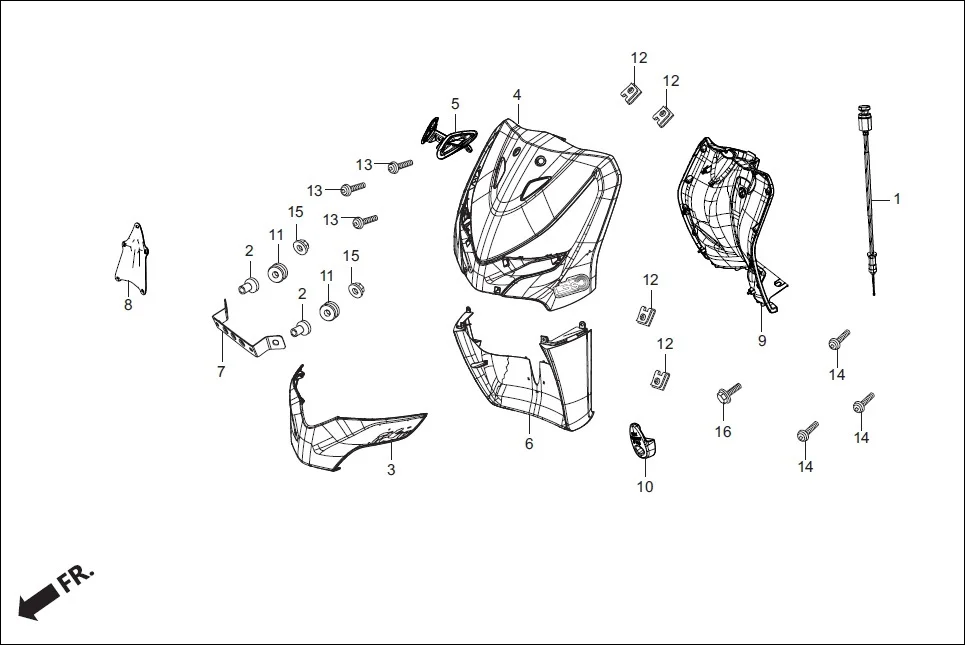

F-6-LX - FRONT COVER (FR. & INNER COVER)
Hero Destini 125 (Oct, 2018) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17950-AAW-300 | CABLE COMP. CHOKE | 1 | |
| 2 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 3 | 64303-ABS-010 | FRONT GRILL (LX) | 1 | |
| 4 | 64305-ABS-000R | SET COVER FR UPPER PBM (NH-B08M) | 1 | |
| 4 | 64305-ABS-000S | SET COVER FR UPPER PSW (WH-004P) | 1 | |
| 4 | 64305-ABS-000T | SET COVER FR UPPER NOBLE RED (RD-021M) | 1 | |
| 4 | 64305-ABS-000U | SET COVER FR UPPER CH BRONZE (RD-022M) | 1 | |
| 5 | 64307-ABS-000 | FRONT HORN UPPER | 1 | |
| 6 | 64309-ABS-000R | FRCOVER LOWER PBM (NH-B08M) | 1 | |
| 6 | 64309-ABS-000S | FR COVER LOWER PSW (WH-004P) | 1 | |
| 6 | 64309-ABS-000T | FR COVER LOWER NOBLE RED (RD-021M) | 1 | |
| 6 | 64309-ABS-000U | FR COVER LOWER CH BRONZE (RD-022M) | 1 | |
| 7 | 64311-AAW-000 | STAY FR NO PLATE | 1 | |
| 8 | 64328-AAY-000 | SPLASH GUARD FR | 1 | |
| 9 | 81131-ABS-000 | COVER INNER | 1 | |
| 10 | 81139-AAW-000 | LOAD HOOK FR | 1 | |
| 11 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 12 | 90344-AAW-000 | NUT CLIP 5MM | 12 | |
| 13 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 14 | 93903-34480 | SCREW, TAPPING, 4X 16 | 13 | |
| 15 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 16 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 1 | |
