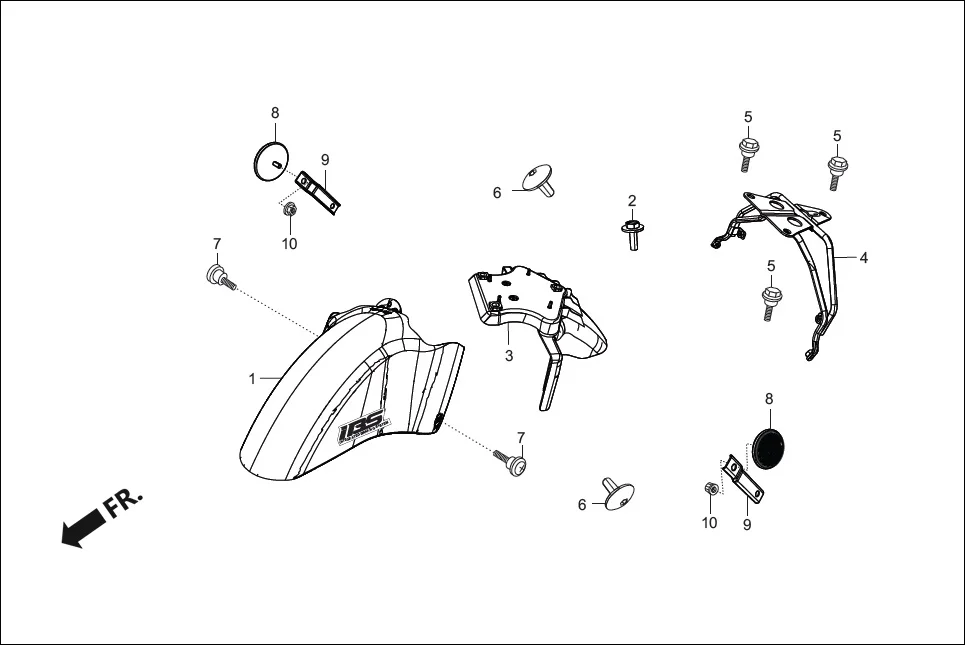

F-5 - FRONT FENDER
Hero Destini 125 (Oct, 2018) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-ABS-000R | SET FR. FENDER (PANTHER BLACK ME.) | 1 | |
| 1 | 61000-ABS-000S | SET FR. FENDER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 1 | 61000-ABS-000T | SET FR. FENDER (NOBLE RED). | 1 | |
| 1 | 61000-ABS-000U | SET FR. FENDER (CHESTNUT BRONZE) | 1 | |
| 3 | 61110-AAY-000 | FR FENDER B | 1 | |
| 4 | 61120-AAY-000 | STAY FR FENDER ASSY | 1 | |
| 5 | 90107-AAY-000 | BOLT BREAK OFF | 3 | |
| 6 | 90107-AAY-400 | BOLT, BODY COVER SET | 2 | |
| 7 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 8 | 33741-AAN-601 | REFLEX REFLECTOR FRONT | 2 | |
| 9 | 51414-AAY-010 | STAY REFLECTOR | 2 | |
| 10 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
