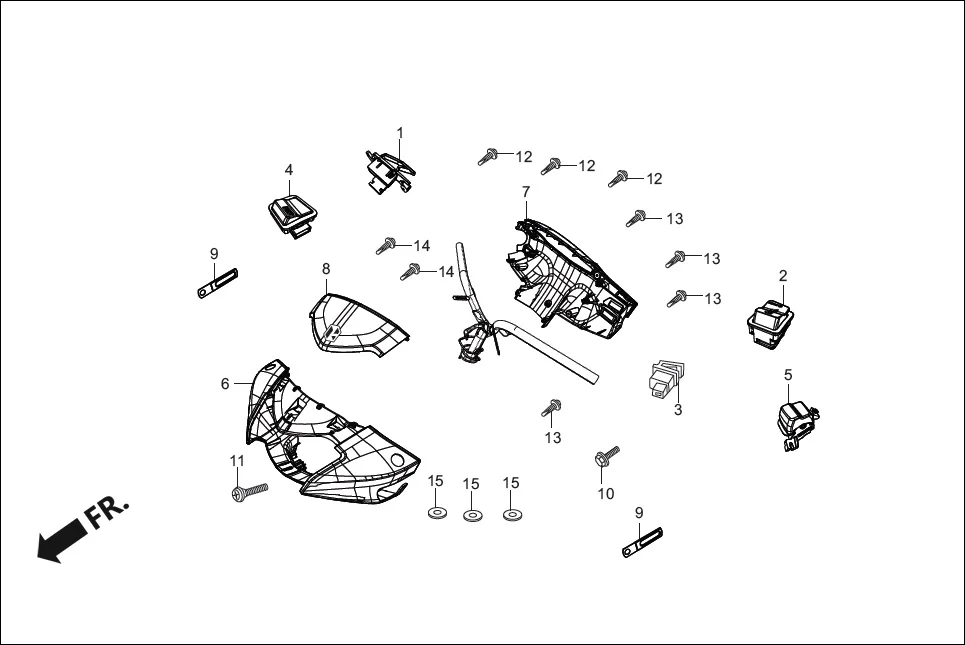

F-2B - HANDLE COVER
Hero Destini 125 (Oct, 2018) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35160-KTP-890 | SWITCH, UNIT START | 1 | |
| 2 | 35170-ABT-001 | SW.UNIT.DIMMER | 1 | |
| 3 | 35180-KTP-890 | SWITCH, UNIT HORN | 1 | |
| 4 | 35190-ABS-001 | SW UNIT I3S | 1 | |
| 5 | 35200-KTP-890 | SWITCH, UNIT WINKER | 1 | |
| 6 | 53205-ABS-000R | COVER HANDLE FR PBM (NH-B08M) | 1 | |
| 6 | 53205-ABS-000S | COVER HANDLE FR PSW (WH-004P) | 1 | |
| 6 | 53205-ABS-000T | COVER HANDLE FR NOBLE RED (RD-021M) | 1 | |
| 6 | 53205-ABS-000U | COVER HANDLE FR CH BRONZE (RD-022M) | 1 | |
| 7 | 53206-ABS-000 | COVER HANDLE RR | 1 | |
| 8 | 61140-ABS-0000 | SET WIND SCREEN. | 1 | |
| 9 | 80107-AAY-000 | CLIP 0.5X50 | 2 | |
| 10 | 90113-AAY-000 | BOLT FLANGE, 5 X 17 | 1 | |
| 11 | 90116-KTP-900 | SCREW WASH 5X16 | 1 | |
| 12 | 93903-34210 | SCREW TAPPING 4X10 | 3 | |
| 13 | 93903-34480 | SCREW, TAPPING, 4X 16 | 4 | |
| 14 | 93903-35380 | SCREW TAPPING 5X16 | 2 | |
| 15 | 94103-04800 | WASHER PLAIN 4MM | 3 | |
