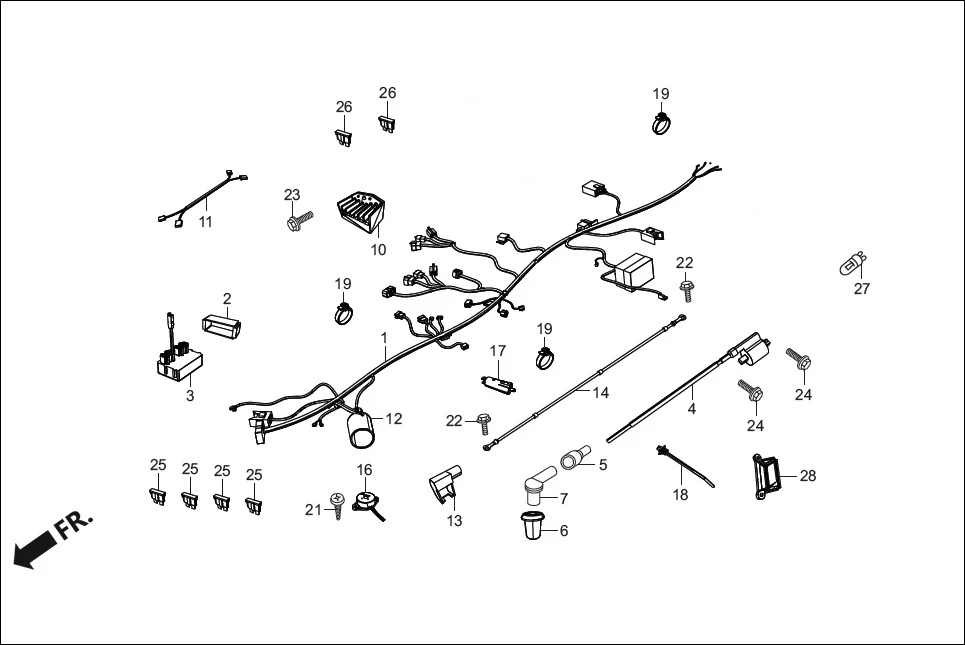

F-22-LX - ELECTRICALS (WIRE HARNESS)
Hero Destini 125 (Oct, 2018) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-ABS-000 | HARNESS WIRE | 1 | |
| 2 | 30401-ABS-000 | CUSHION, CDI UNIT | 1 | |
| 3 | 30440-ABS-000 | UNIT COMP TCI & I3S | 1 | |
| 4 | 30510-AAW-001 | COIL COMP. IGNITION | 1 | |
| 5 | 30604-KTP-890 | CAP, CORD WATER PROOF. | 1 | |
| 6 | 30605-KTP-951 | SEAL, H/T TERMINAL | 1 | |
| 7 | 30700-KTP-951 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 10 | 31600-AAW-00099 | REG RECT ASSY | 1 | |
| 11 | 32101-AAY-000 | SUB HARNESS (FUEL LID SWITCH) . | 1 | |
| 12 | 32108-GW6-700 | COVER ,CONNECTOR | 1 | |
| 13 | 32412-AAW-001 | COV. BAT TERMINAL | 1 | |
| 14 | 32603-KPL-780 | CABLE, ENG-FRM. EARTH | 1 | |
| 16 | 33470-AAY-001 | ELECTRONIC BEEPER | 1 | |
| 17 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 19 | 91541-S0A-003 | CLIP BAND HARN | 3 | |
| 24 | 96001-06018-00 | BOLT, FLANGE, 6 X 18 | 2 | |
| 25 | 98200-31000 | BLADE, FUSE 10A | 4 | |
| 26 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
| 27 | 34911-AAW-301 | LED BULB WHITE WEDGE BASE | 1 | |
| 28 | 81256-AAW-010 | CAP USB CHARGER | 1 | |
